AiM Absolute Boost Pressure Sensor 1/8th NPT 0-50 PSI
Descriere

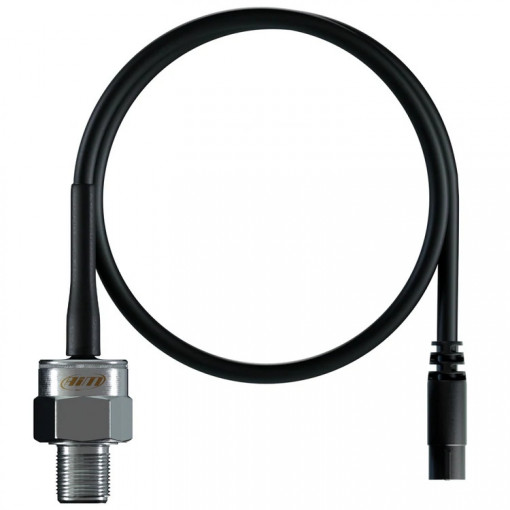

AiM Absolute Boost Pressure Sensor 1/8th NPT 0-50 PSI
AiM 0-50 PSI absolute pressure sensor is suitable for manifold air pressure reading (MAP), being able to read depressions up to -14.5 PSI in relation with atmospheric pressure, additionally to absolute pressures up to 35.5 PSI.
Key Features :
| 1/8th NPT 0-50 PSI | 4 pins 719 male binder |
The 1/8th NPT 0-50 PSI pressure sensors are fitted with male four pins black 719 binder plug connections to suit all AIM loggers and dash display/loggers. Many things affect the various engine pressures, and knowing that your engine has the correct amount is paramount to longevity and performance. Suitable for oil, fuel and water pressure readings.
Connections
MXS / MXP / MXG / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, please use the 719 - 719 patch lead, which is available in various lengths from 0.5 - 3 metres. For most installations, you will need one of these leads.
EVO4 / EVO4S logger / Channel Expansion are fitted with 712 connections and require a 712 - 719 patch lead to connect these sensors.
Technical
- Supply: 8-16V
- Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation: 500 mV/ -14.5 PSI 4500 mV/ 35.5 PSI
- Consumption: < 10 mA
- Temperature working range: from -20°C to 135°C
- Sealing: IP66
- Housing: 316 stainless steel
- Weight: 30g
- Cable Length: 400mm
- Thread: 1/8th NPT
