AiM IR Optical Lap Transmitter Beacon

Descriere

The AiM Infrared Beacon has been designed to be positioned at the side of a track and operates with the Infrared pickup/receiver to sample lap times.

Key Features :

AiM Optical Lap Transmitter

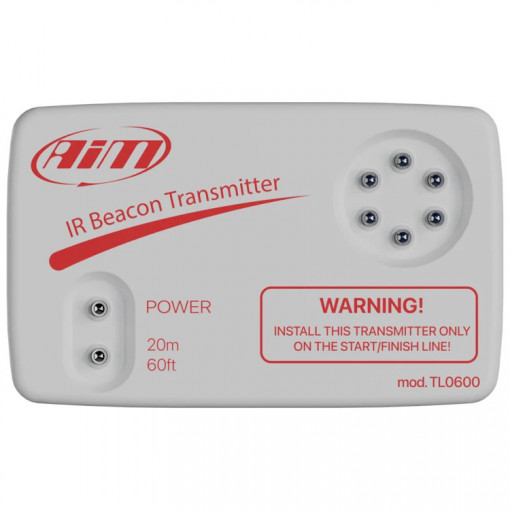

The AiM Infrared Beacon (Optical Lap Transmitter) is a device that is simply placed at the side of the track start/finish line and operates with the Infrared pickup/receiver.

The beacon transmitter may be powered by the internal battery pack, composed of 8 AA batteries (not included), or by a 12V external power source using the supplied lead.

Please Note: Infrared receivers are available to purchase in our accessories tab. The IR pickup sensor is available in a 4 pin 712 metal connector or a 4 pin 719 plastic connector and needs to be pointed to the side of the track where the transmitter is installed to see it.

Installation

The beacon transmitter needs to be installed on the side of the track
Ensure it faces the track
Be sure to fix securely to avoid movements or false lap signals, then switch on

The beacon transmitter has two operating modes: Low power and HIGH power.
Low power is used when the track is less than 10m (30ft) wide
High power is used when the track is up to 20m (60ft) wide.

When the beacon transmitter is working on high power both of the LEDs on the device will start to blink, in this case, it is recommended to power the beacon using a 12V external battery.

Analyse with Race Studio 3

Analysis

With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
