AiM Magnetic Speed Sensor 712/719 Plug
Descriere

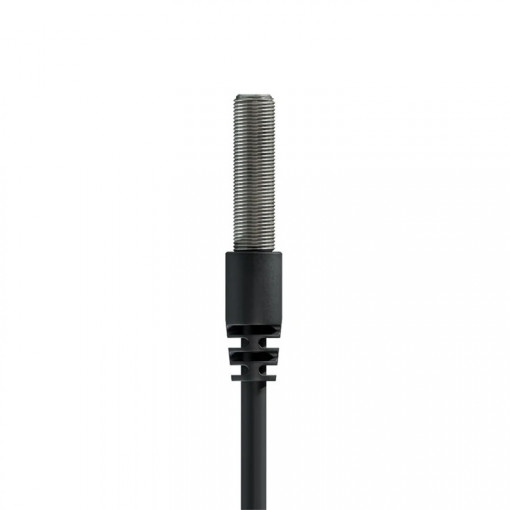

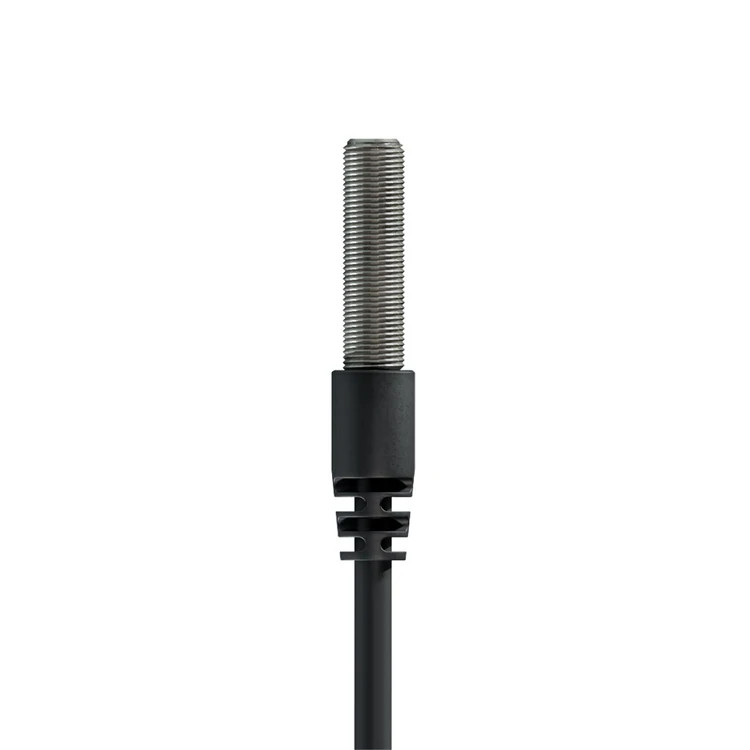

AiM Magnetic Speed Sensor
The AiM non-contact sensor needs a metallic trigger to pass in front of it. It comes with a magnet and locknuts.
Key Features :
| Magnetic wheel speed sensor | 712 metal connector or 719 plastic connector |
| 1m cable |
AiM Magnetic Speed Sensor
The AiM non-contact sensor needs a metallic trigger to pass in front of it. It comes with a magnet and the locknuts required and is available in two versions: a plastic connector (Binder 719) and a metallic connector (Binder 712).
The sensor consists of a thin piece of metal that passes a continuous current through it. When the sensor is placed in a magnetic field, the electrons move to one side of the metal, and protons move to the other side of the plate. Then you will be able to get a voltage.The sensor only produces around seven volts. When the electrons move to one side, a potential difference is created between the two sides of the metal.
The sensor only produces around seven volts. When the electrons move to one side, a potential difference is created between the two sides of the metal.
Connections
The 712 connection will suit EVO4 Data Loggers.
The 719 connection will suit MXL (Strada), MXG, MXS, MXP (inc Strada). Use with a 719-719 patch lead to extend to the required length.
Technical

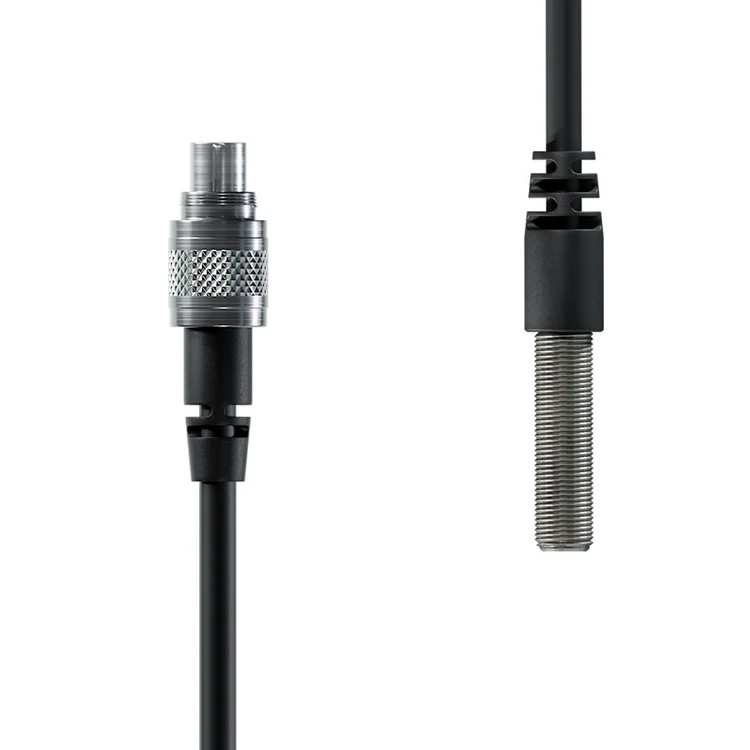

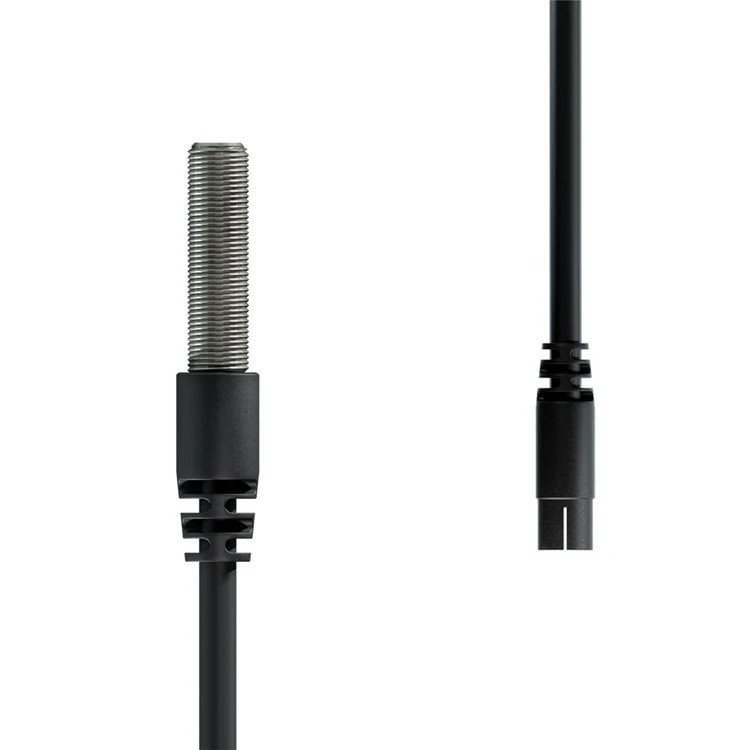

- 712 Metal or 719 Plastic Binder Connector
- Ensure the distance between the sensor and the magnet is between 8 and 20mm
