AiM MX2E Plug & Play Dash Logger Kit for Lotus Elise / Exige

Descriere

In the Box

The AiM MX2E Plug & Play Dash Logger kit specifically designed for Lotus Lise/Exige. It can be used for daily driving and customized to suit track days at the push of a button.

Key Features :

MX2E Plug & Play Dash Logger Kit

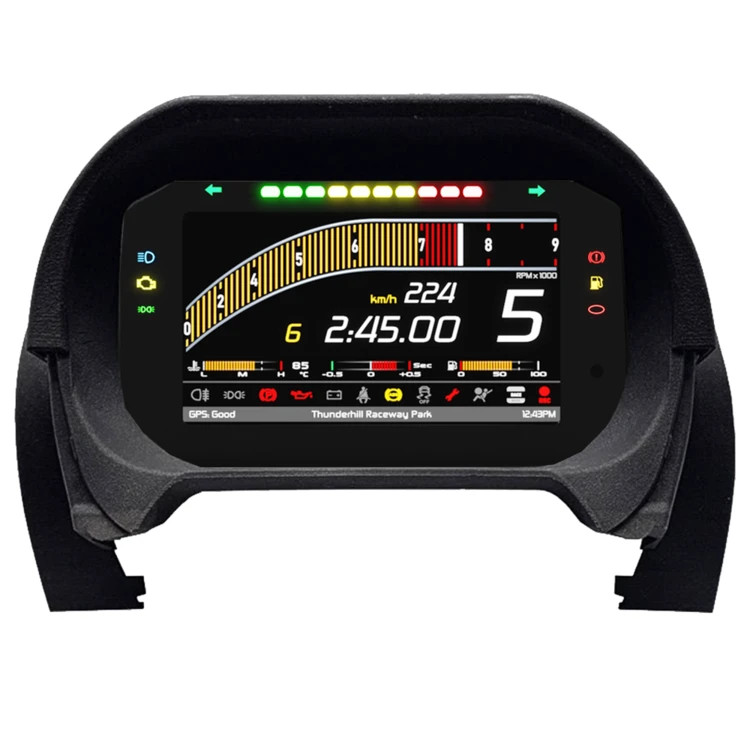

The AiM MX2E Plug & Play Dash Logger kit has been specifically designed for the Lotus Elise and Exige 2011-2020 models (fitted with a Toyota engine)*. The dash features a 6" high contrast, high-quality TFT display with 18 integrated LEDs, and is mounted in the included bespoke instrument cluster.

The cluster has been designed to be easy to install and includes housing for the included GPS Module. With four integrated buttons (two on each side) built into the sides for scrolling through the pages/menus. When switched on the MX2E will automatically recognize the venue and start to download the start/finish coordinates and calculates lap times when these coordinates are crossed. We already have over 4,000 tracks on our database, if the track your at isn't on the database it is possible to create and load it on the database using our Race Studio 3 Software.

Please Note: If you want your current milage added to the dash, please state what you want it to be (miles or km) in the section notes of the order. If you prefer speaking to one of our AiM specialists don't hesitate to get in touch.

Display

The MX2E dash has two types of display. You can choose between the road or track and even choose between analogue or digital. There are 16 display layouts to choose from, with four different colour options. Supplied with a GPS Module which will provide accurate GPS speed, lap timing and track mapping. You can view the track data directly from the dash or more in-depth analysis can be viewed using t our Race Studio 3 Software. This will enable you to understand graphs, histograms and tables to help you make comparisons to different laps, sessions on track days.

There is a wide range of icons available on the display rear fog light, position lights on, ABS on/malfunctioning, ABS off, hand brake, engine off, pressure low, seat belt not fastened, airbag off all of these icons offer a quick look source of information while your driving.

Integrated LEDs

The MX2E features 18 solid LEDs that offer the following information left or right direction, shift light made up of 10 LEDs, hand brake on, fuel level low, immobiliser on, position lights on, high beam on and engine problems.

18 integrated LEDs, (10 shift lights, 6 status information LEDs, 2 turn indicators.

Camera Inputs (optional)

Analogue camera input is available, to swap your display into a mirror camera through push button command or event management.

Expand Your System

These are only some of the items that can be added to our MX2E for incrementing the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MX2E and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.

Technical

• Display : 6" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600: 1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient Light Sensor: Yes
• Integrated buttons in cluster: 4
• Status information LEDs: 6
• Shift light LEDs: 10
• Turn indicators: 2
• CAN connections: 2
• ECU connection: Yes
• External modules: GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
• Wi-Fi connection: Yes
• Rear camera input: Yes
• Internal memory: 4GB
• Body: Anodised Aluminium

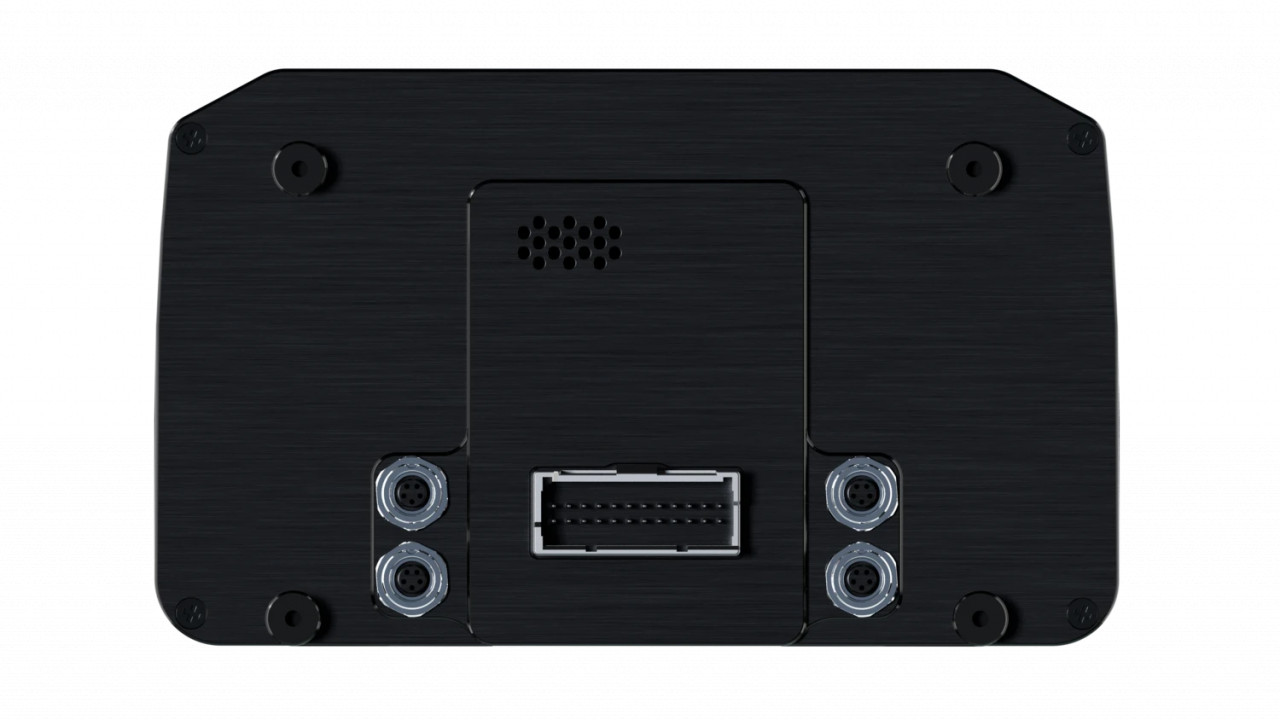

• Connectors: 1 Delphi 12040722 connector & 4 binder 712 connectors
• Dimensions: 191 x 114,2 x 26,4 mm
• Weight: 640g
• Power consumption: 400 mA
• Waterproof: IP65
