AiM MXP 6" TFT Display Dash Data Logger

The MXP TFT 6" wide colour Dash Logger is fully configurable and suitable for many different Motorsports. It has been designed to acquire and display data coming from the ECU. The internal accelerometer and GYRO, GPS Module (included in the kit), analogue/digital inputs and predefined math channels. Performance and data acquired can also be incremented by adding up to eight expansion modules.

Easy Connection

Connecting the MXP dash to your ECU is simple. You can sample dozens of channels straight from the vehicles ECU. This is usually the quickest and easiest setup, needing only a cable connection to the ECU instead of multiple connections and analogue sensors. The sampled data will depend on your actual ECU but typically includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio). The list of available ECU drivers is constantly updated and upgraded and includes approximately 1000+ different  ECUs.

Two Digital Outputs

MXP features two digital outputs. Each of them can give an output of 1 amp at 12 volts. They can be configured to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

Display

With a high contrast 6" TFT display which is fully configurable. You can create and customise pages/displays to suit your requirements. Swapping pages can be managed by pushing on or two pushbuttons.

Two analogue camera inputs are available, to switch your display into a mirror camera, through a pushbutton command or event management. The camera sold separately.

Flexible Alarms

The MXP has ten configurable RGB LEDs. You can choose the conditions and colours. Select a solid alarm or flashing one and the flashing frequency, you can choose to have an accompanying text message and set the alarm priorities.

With integrated shift lights you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

CAN output

With the CAN Output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

GPS Module

The GPS Module connected via CAN to the MXG makes lap time calculation and track position analysis easy. With 4000+ worldwide tracks already stored with the start and finish line coordinates you will have no problem when you're on the track. As soon as the MXP is turned on the GPS Module will locate its position, identify track line coordinates and start immediately sampling lap and split time. If the track is not on the database, you can easily add the start/finish line coordinates to the MXP via a PC before you go to the track using our Race Studio 3 software.

The GPS Module is available 0.50m, 1.3m, 2m, 4m, or a roof version in 2m, 4m length cables.

Pin Harness

The 37 pin harness comes standard in the kit, should you need more data you can add our 22 pin harness as an optional extra.

Expand Your System

These are only some of the items that can be added to our MXP for incrementing the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXP and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.

Technical

• Display: 6" TFT LCD Display
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient Light Sensor: Yes
• Alarm Display Icons: Yes, freely configurable
• Shift Lights: 10 integrated freely configurable RGB LEDs
• Alarm LEDs: 5 configurable RGB LEDs
• CAN connections: 3
• ECU connection: CAN, RS232 or K-Line to 1,000+ industry-leading ECUs
• Expansion CAN connection: GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD
• Analogue Inputs: 8 fully configurable, max 1,000 Hz each
• Digital Inputs: 4 Speed inputs, lap signal, coil RPM input
• Digital Outputs: 2 (1A max each)
• Second CAN: Yes
• Wi-Fi connection: Yes
• Accelerometer: Internal Three-axial ± 5G + Three-axial Gyroscope
  + 3 axis magnetometer
• Internal Memory: 4 GB
• Body: Anodized Aluminium
• Pushbuttons: Metallic

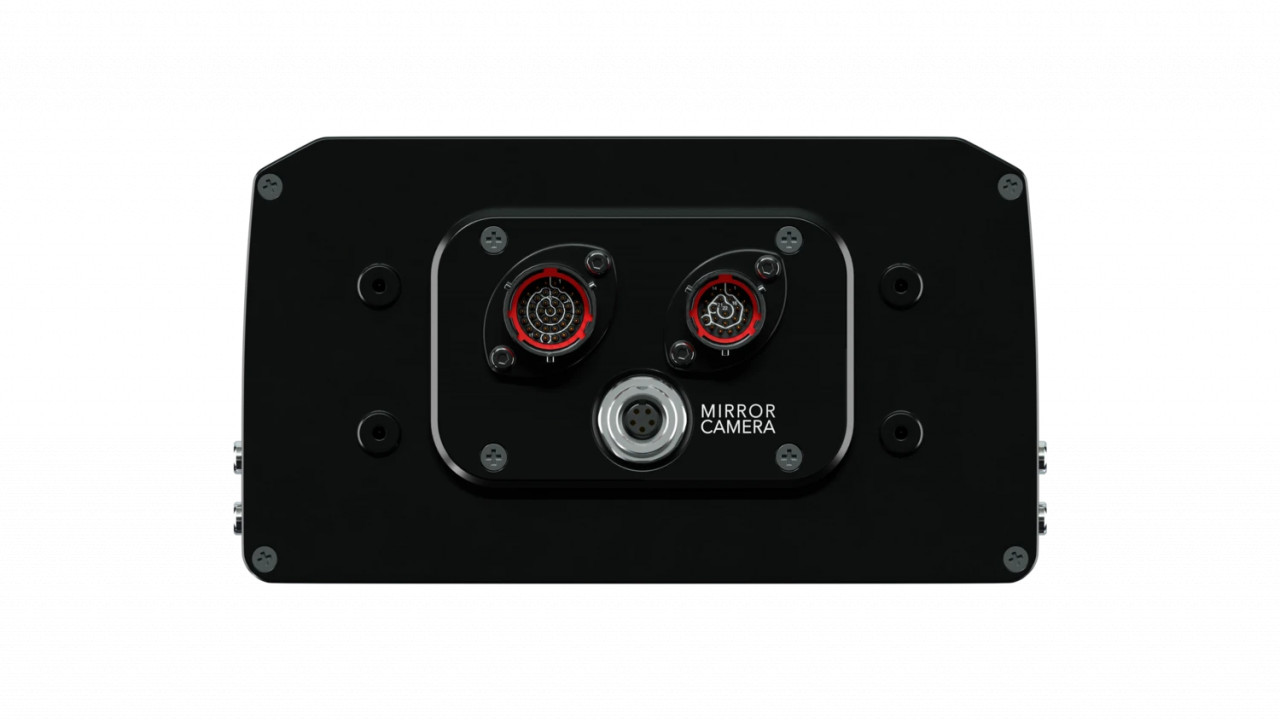

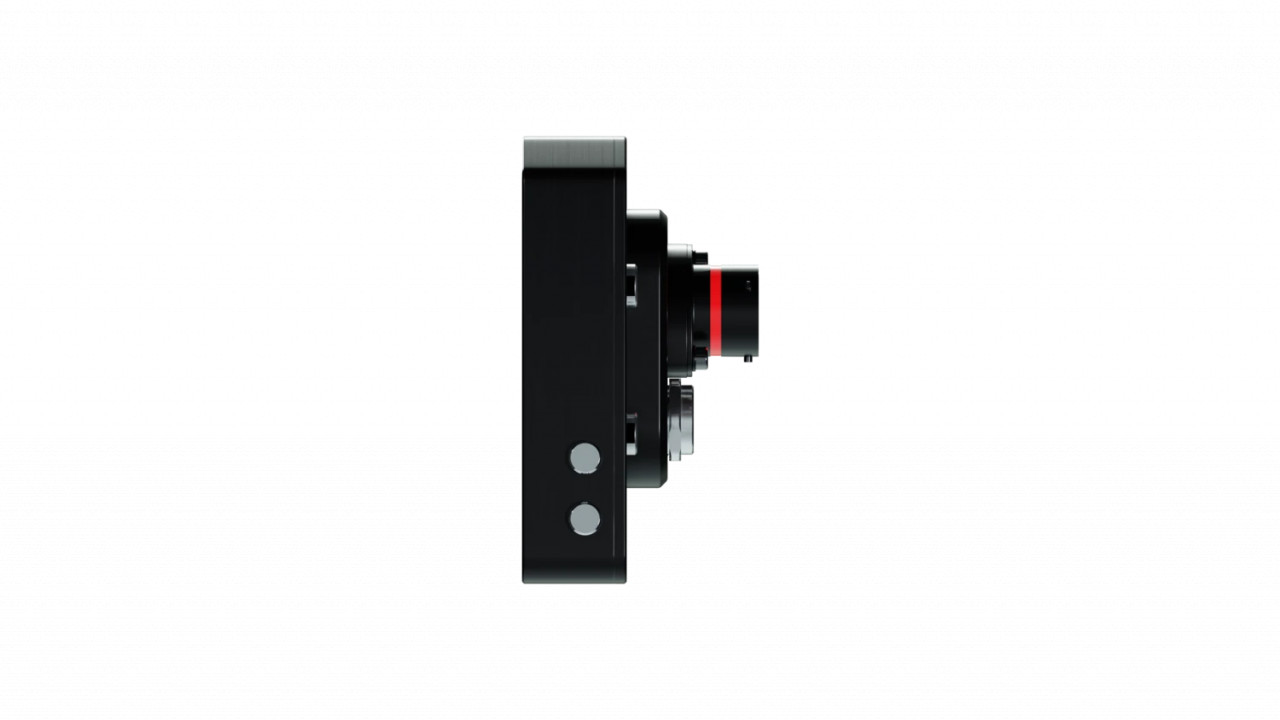

• Connectors: 2 Motorsport connectors + 1 Binder connector
• Power Consumption: 400mA
• Dimensions: 189.6 x 106.4 x 24.9mm
• Weight: 640g
• Waterproof: IP65
