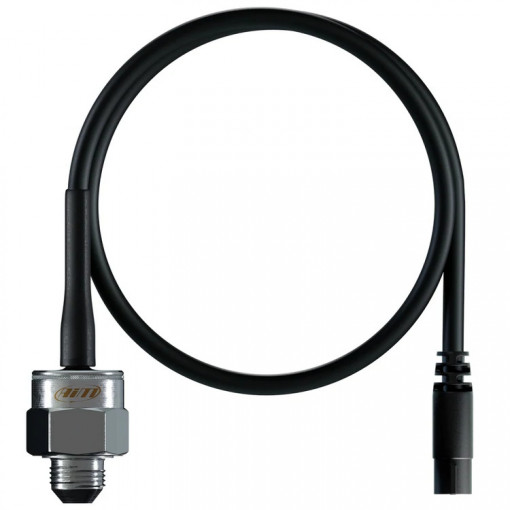

AiM Oil / Fuel Pressure Sensor Dash 3 3/8 24 0-5 Bar

Descriere

AiM Oil / Fuel Pressure Sensor Dash 3 3/8 24 0-5 Bar

The AiM 3 3/8 24 0-5 Bar pressure sensor is suitable for oil, fuel and water pressure readings, reading pressures up to 5 bars.

Key Features :

AiM Oil / Fuel Pressure Sensor Dash 3 3/8 24 0-5 Bar

The Dash 3 3/8 24 0-5 bar pressure sensor is suitable for oil, fuel and water pressure readings, reading pressures up to 5 bars.

The Dash 3 3/8 24 0-5 bar pressure sensor is fitted with a male four pins 719 binder connector to suit our loggers and dash display/loggers.
Many aspects affect the various engine pressures, so knowing your engine has the correct amount of pressure is paramount to longevity and performance.

This sensor is also available in an M10 0-5 Bar. Available in the Car Sensors tab.

Connections

MXS, MXG, MXP, MXL (Strada & Pista), MXL2, EVO5, MXm harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, you will require our 719-719 patch lead available in various sizes from 0.5m - 4 meters in length. For most installations, you will need one of these patch leads.

EVO4, EVO4S Data Logger, Channel Expansion are fitted with 712 connections and require a 712-719 patch lead to connect the sensor. This patch lead is available in 0.5m - 4-meter lengths. Patch leads are available in the optional extras.

Technical

• Supply: 8-16V
• Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
• Characterisation: 500 mV/ 0 bar 4500 mV/ 5 bar
• Consumption: < 10 mA
• Temperature working range: from -20°C to 135°C
• Sealing: IP66
• Housing: 316 stainless steel
• Weight: 30g
• Cable Length: 400mm
• Thread: 3/8 24
