AiM Smartycam RPM Bridge With USB Cable
Cod produs - SKU
X90BRIDGE02
EAN
X90BRIDGE02
Costurile de livrare nu sunt incluse. Preturile pot varia in functie de furnizor. Pretul final este afisat pe proforma sau ne puteti contacta.
Descriere

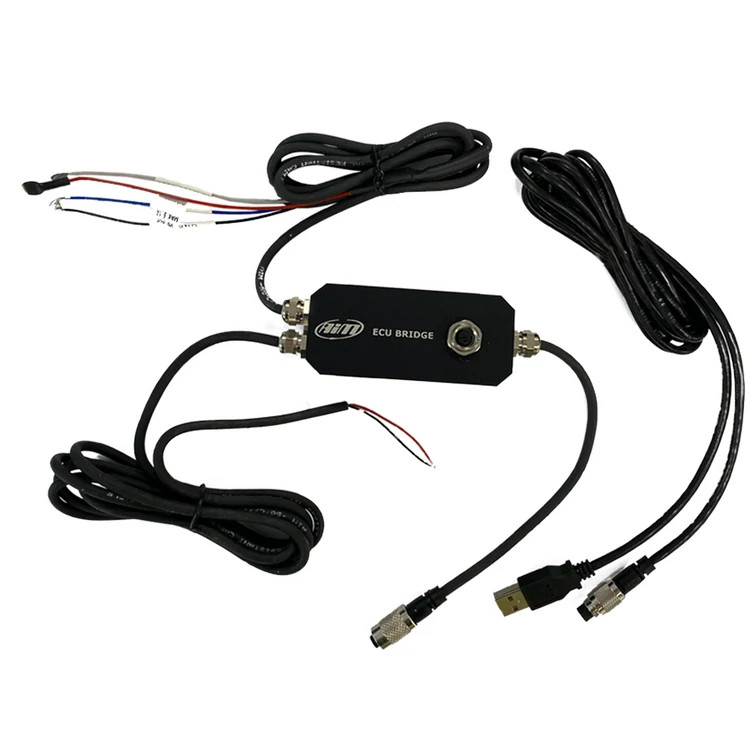

In the Box
RPM Bridge, USB cable.

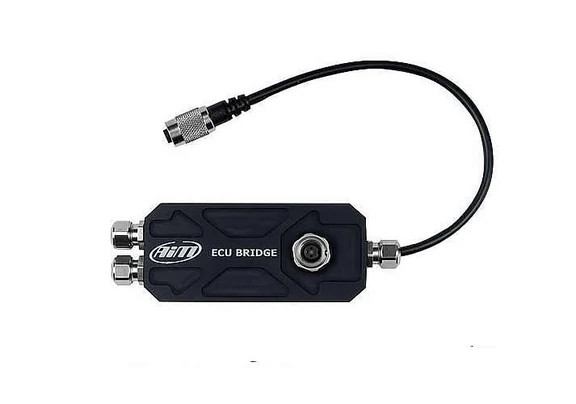

The Aim RPM Bridge for Car is an interface designed to allow RPM overlay on SmartyCam GP HD videos when the car has got no engine control unit (ECU): this can happen with classic cars or particular car categories.
RPM data are obtained with connection to the coil. RPM Bridge can as well be useful to get RPM data when ECU has got no data line CAN/K Line/RS232: in this case data are obtained with connection to the square wave signal coming from that kind of ECU.
RPM Bridge allows visualisation but not recording of RPM data.
Technical
- Coil signal 150-400 V
- Square wave signal 4-50 V
- CAN protocol for external modules (visors or SmartyCam HD)
- USB port for PC communication
- External power 8/18 V
