AiM Solo 2 DL OBDII & External Power Connector Cable

Descriere

AiM Solo 2 DL OBDII & External Power Connector Cable

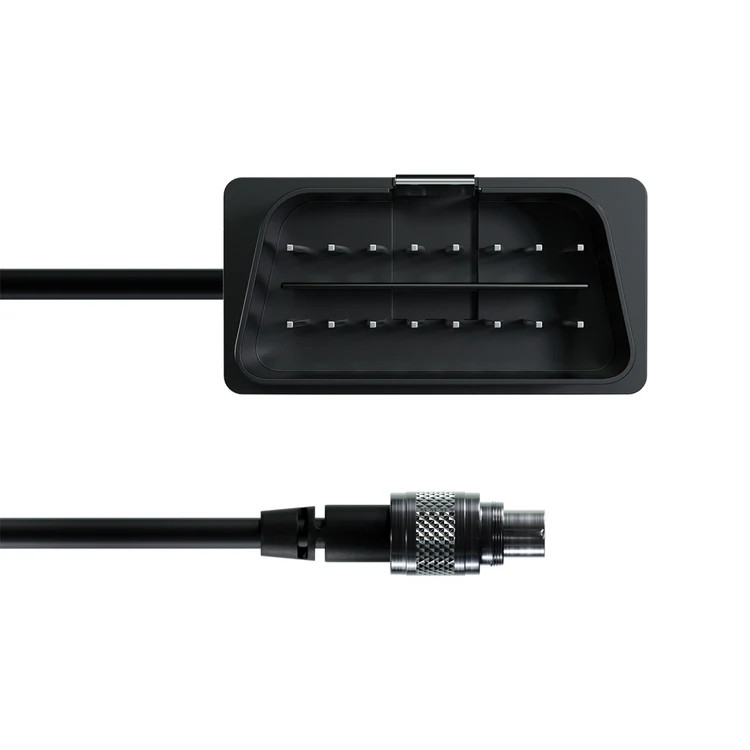

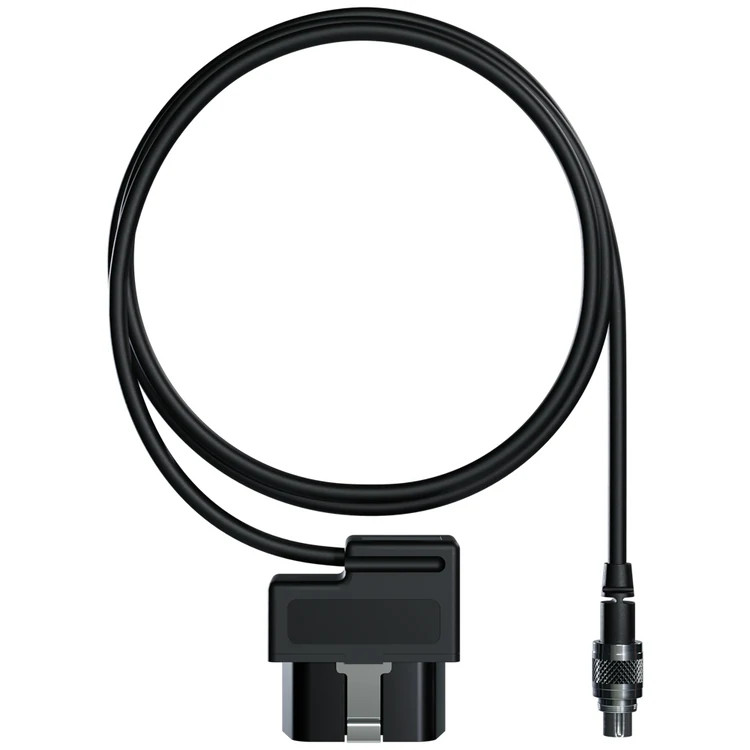

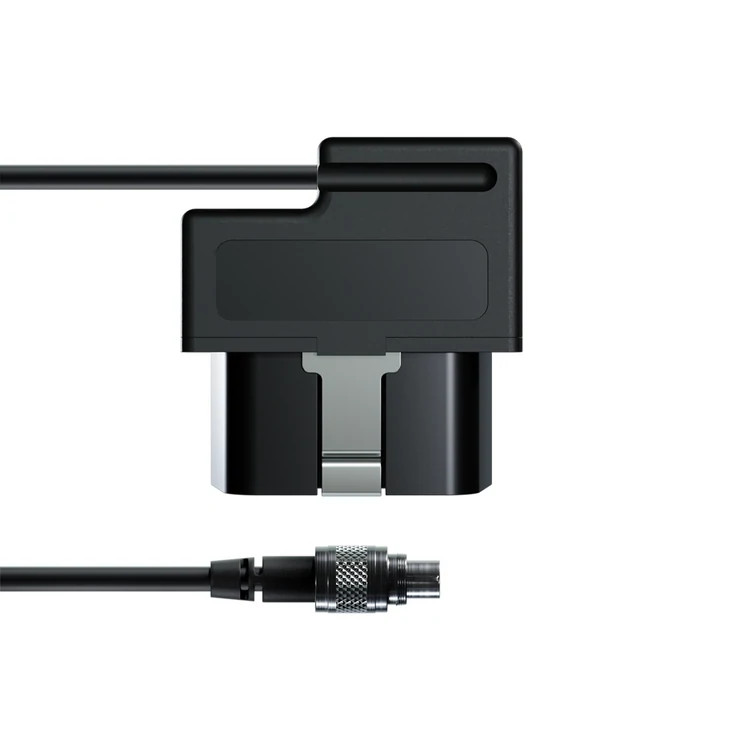

The AiM OBDII 2m external power cable connects your Solo 2 DL to your ECU wiring.

Key Features :

OBDII External Power Cable

The AiM OBDII 2m external power cable is used to make your AiM device, Solo 2 DL communicate with the vehicle ECU.

This is one of the connection cables available for the Solo 2 DL. Others are the RS232/CAN and the RPM cable.

Some of the OBDII protocol channels received are RPM, Vehicle speed, Fuel level, Throttle position. For an extended list of protocols please see the technical data sheet in the Downloads Tab.

Technical

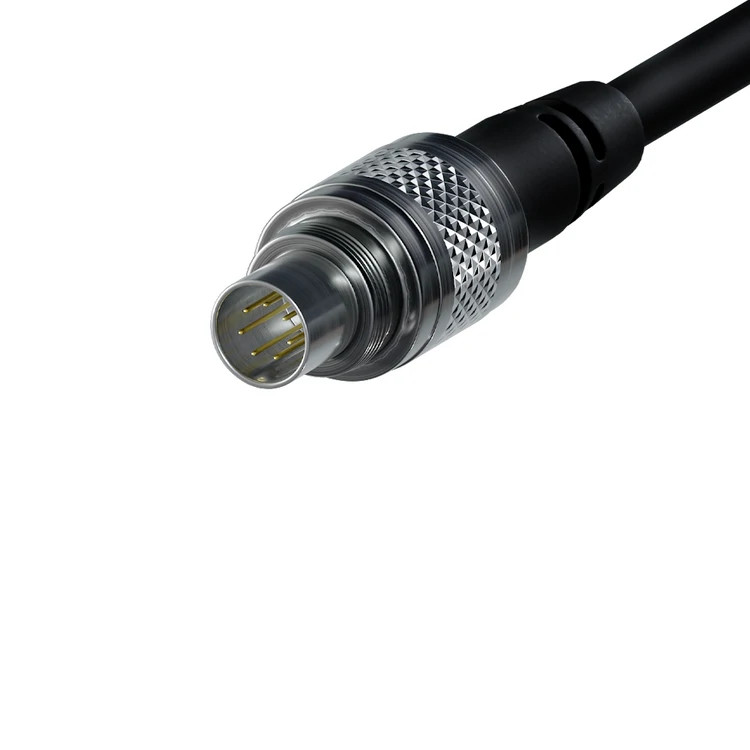

• 7 pin - 712 male binder connection
• 2m Cable
• OBDII Connector Pin:
• 2 - Positive bus line - SAE J1850 protocol: not supported by AiM devices
• 4 - Chassis GND
• 5 - GND signal
• 6 - CAN High - ISO 15765-4 and SAE J2234 protocols
• 7 -  K-Line - ISO 9141-2 and ISO 14230-4 protocols
• 10 - Negative bus line - SAE J18050 protocol: not supported by AiM devices
• 14 - CAN low - ISO 15765 and SAE J2234 protocols
• 15 - L line - ISO 9141-2 and ISO 14230-4 protocols
• 16 - Battery supply
