AiM Two-way Data Hub CAN Connection Multiplier
Descriere

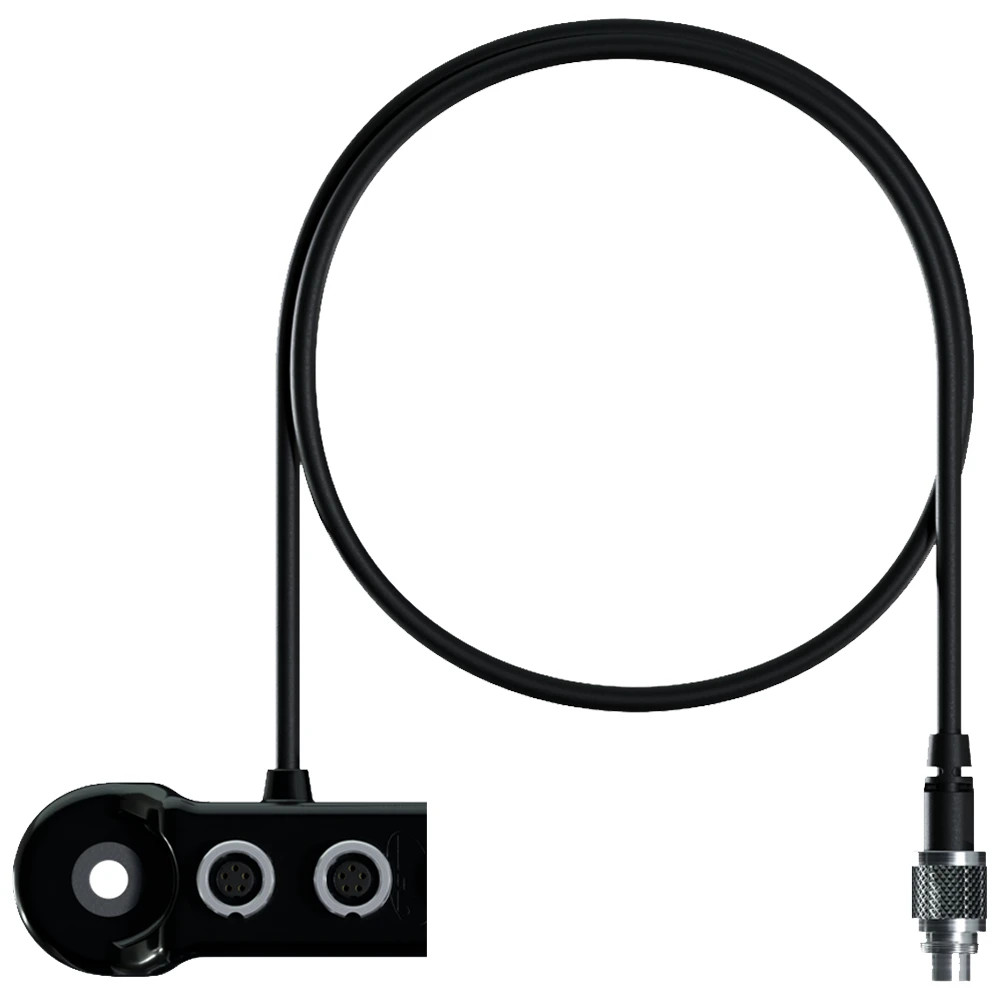

AiM Two-way Data Hub CAN Connection Multiplier
The AiM two-way Data Hub provides CAN channels and works as an interface between our AiM loggers and sensors.
Key Features :
| Five pins 712 male Binder | Two-way hub |
| Cable length - 40cm | Build a network |
Two-Way Data Hub
The compact two-way data hub provides CAN channels and works as an interface between our Loggers and equipment such as LCU Lambda Controller, GPS Module, TC Hub, SmartyCams and many more.
Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.
The two-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.
You can connect more Data Hubs to build a network. You can see it in the image below.
Our Data Hubs are also available in the following versions and are in the accessories tab.
Four-way data hub
Two-way data hub with external power connection - Usually used on Karts
Connection Example
These are some devices that can add extra data to your vehicle for incrementing performance and data.
Technical
- Dimensions: 70 x 30 x 23.5mm
- CAN cable length: 40cm
- Weight: 86g
- Waterproof: IP65
