AiM 22 Pin Deutsch Harness MXS, MXP, MXG, MXL2

Description

The AiM 22 pin harness is an optional extra which is used to add extra channels and advanced functions to your kit.

Key Features :

22 pin Optional Harness for the MX Series

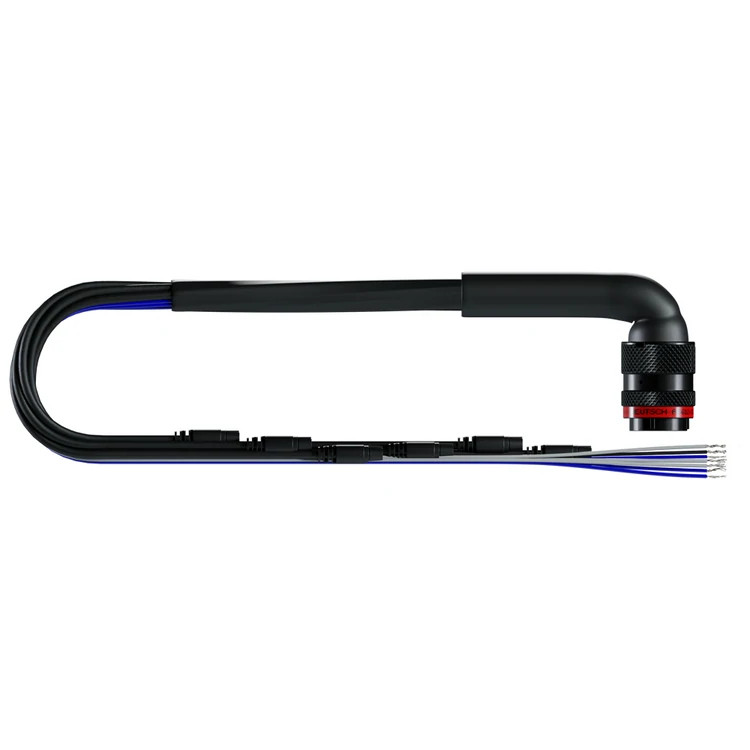

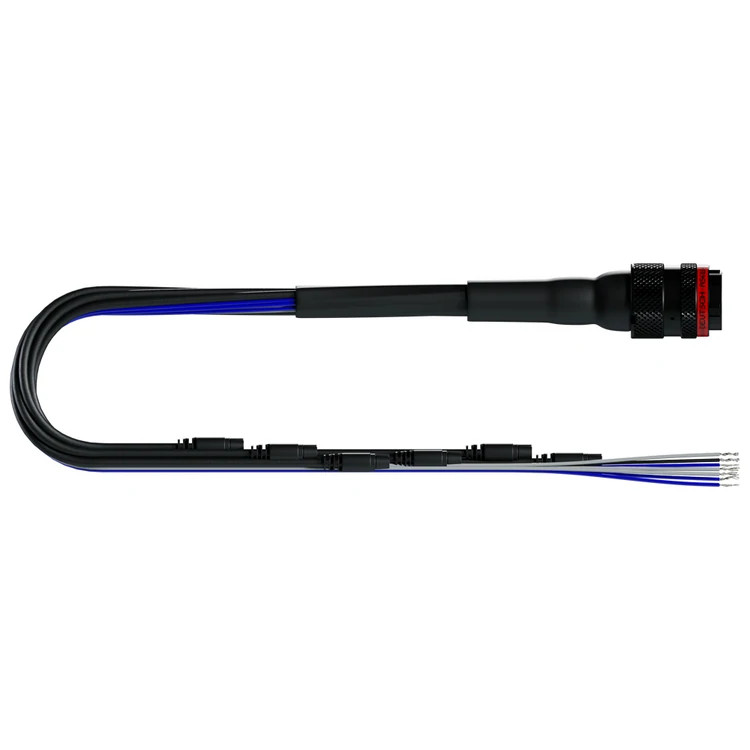

The AiM 90° 22 pin harness plugs into the 22-pin connector on the MXS, MXP, MXG or MXL2 dash loggers.

Several of the advanced functions rely on this harness, which is not included with the standard 37 pin harness which comes as standard with the dash loggers.

The 22 pins optional harness provides access to the following functions:

Analogue sensor channels 5, 6, 7, 8
Digital wheel speed sensor inputs 2, 3, 4
Digital 12V outputs 1, 2
RS232 ECU connection

Please Note: The standard harness that comes with the MXS, MXG, MXP, MXL2 allows 4 inputs. If you would like more inputs for your race data then add this optional harness to your kit.

Adding analogue sensors greater than 4 - The standard harness will allow 4 analogue channels (sensors) - (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure, (4) Brake Pressure.

Using the 22 pin harness you can add four more analogue channels (sensors) (5) Steering Angle, (6) Throttle Position, (7) Gear Box, (8) Differential Temperature.

Technical

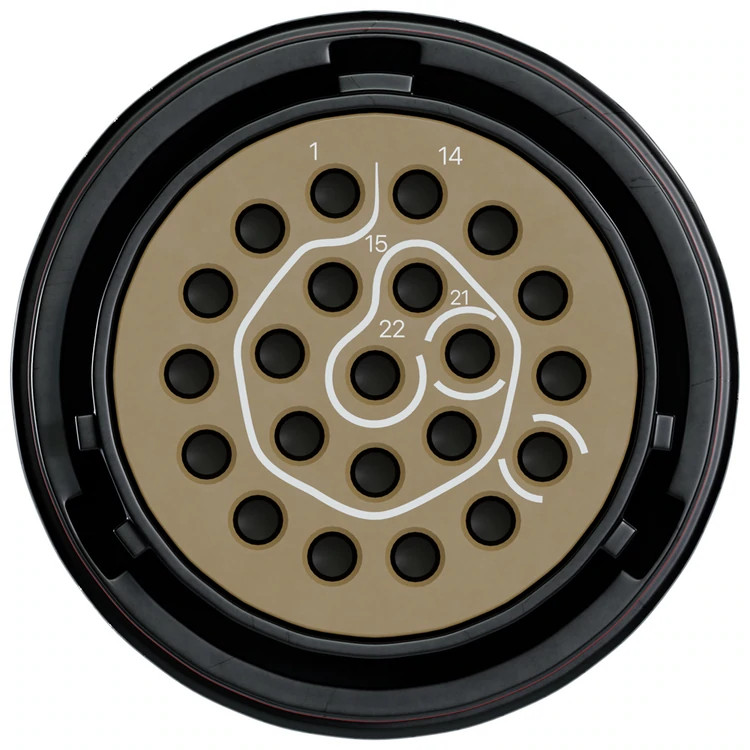

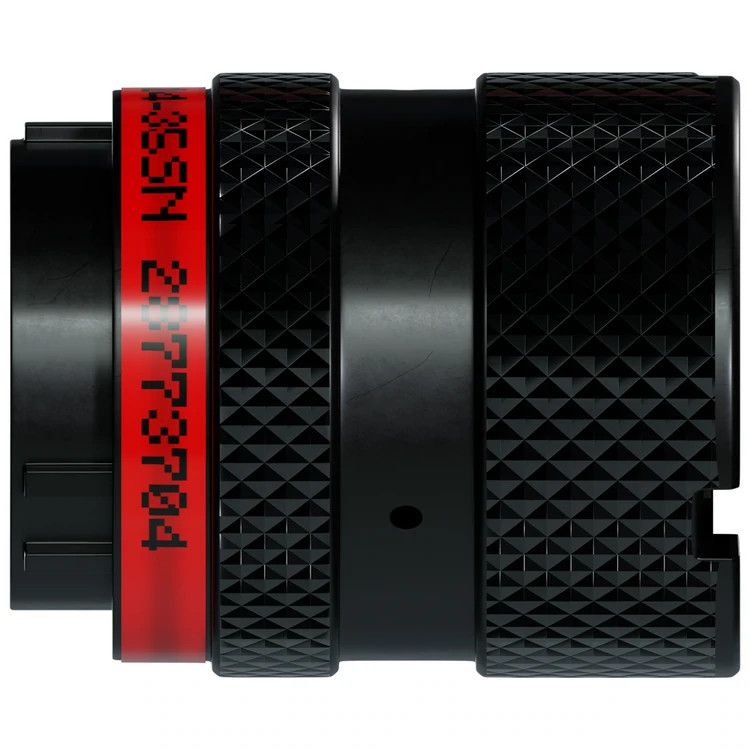

• 22 pin Deutsch Female Flying Connector
• 4 pins Binder 719 Female connector - See table in Downloads Tab
• Table of none ended cables  - See table in Downloads Tab
