AiM Brake Pressure Sensor 1/8th NPT 0-300 PSI
Description
AiM Brake Pressure Sensor 1/8th NPT 0-300 PSI

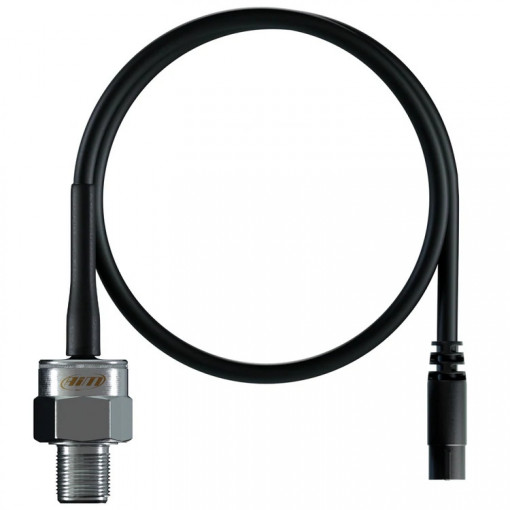

The AiM 1/8th NPT 0-300 PSI pressure sensor is suitable for brake pressure reading, being able to read pressures up to 300 PSI.
Key Features :
| 1/8th NPT 0-300 PSI | 4 pins 719 male binder |
AiM Brake Pressure Sensor 1/8th NPT 0-300 PSI

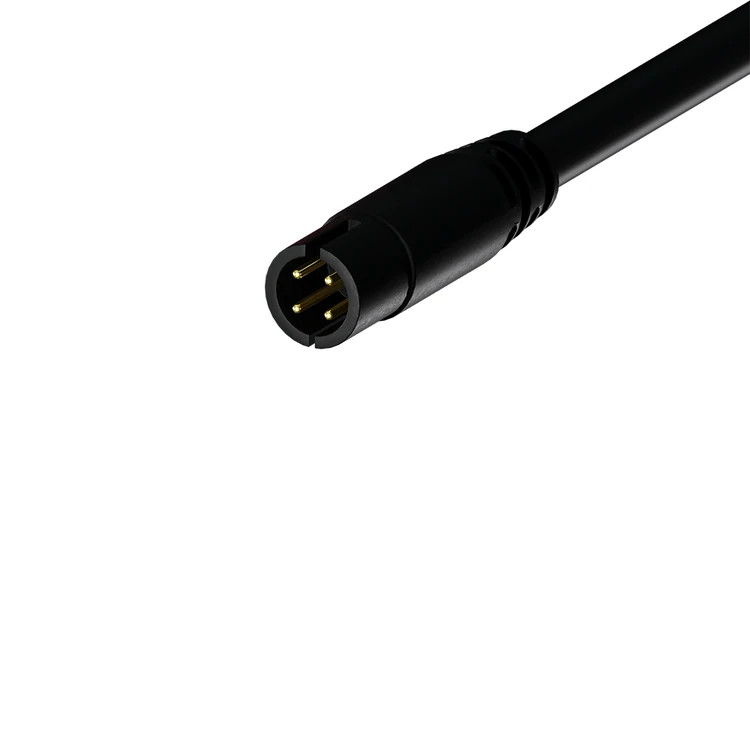

The 1/8th NPT 0-300 PSI pressure sensors are fitted with male four pins black 719 binder plug connections to suit all AIM loggers and dash display/loggers. Whether your car is equipped with single, dual, fixed or adjustable master cylinders, adding brake pressure sensors allow you to monitor brake performance, make fundamental changes and identify issues quickly and precisely.
Available with an 1/8 NPT thread and 0-300 or 0-2000 PSI pressure range.
Connections
MXS / MXP / MXG / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, please use the 719 - 719 patch lead, which is available in various lengths from 0.5 - 3 metres. For most installations, you will need one of these leads.
EVO4 / EVO4S logger / Channel Expansion are fitted with 712 connections and require a 712 - 719 patch lead to connect these sensors.
Technical
- Supply: 8-16V
- Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation: 500 mV/ 0 PSI 4500 mV/ 300 PSI
- Consumption: < 10 mA
- Temperature working range: from -20°C to 135°C
- Sealing: IP66
- Housing: 316 stainless steel
- Weight: 30g
- Cable Length: 400mm
- Thread: 1/8th NPT
