AiM EVO5 22 Pin Deutsch Harness

Description

AiM EVO5 22 Pin Deutsch Harness

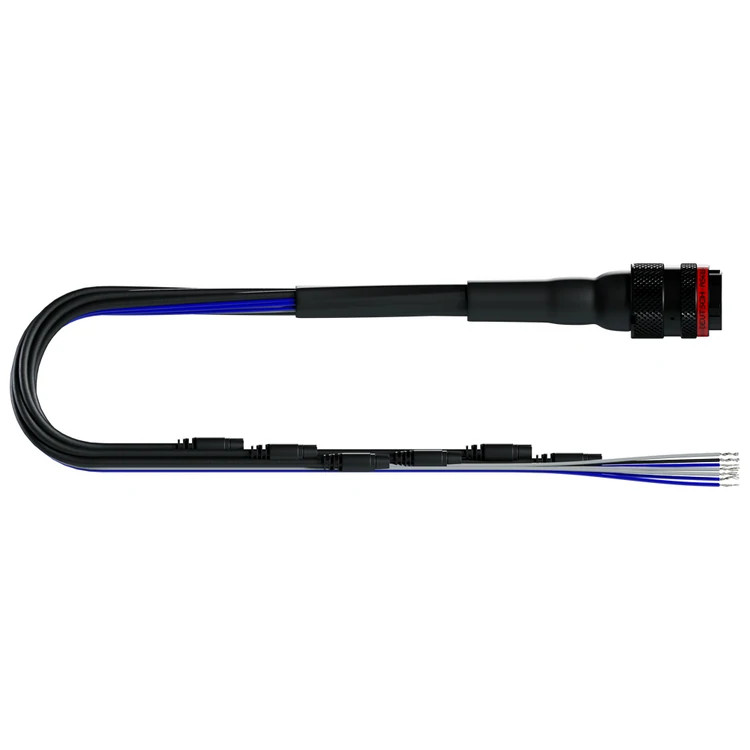

The AiM EVO5 22 pin Deutsch harness has been designed as an optional harness to add extra data to your device.

Key Features :

 22 pin Harness for EVO5

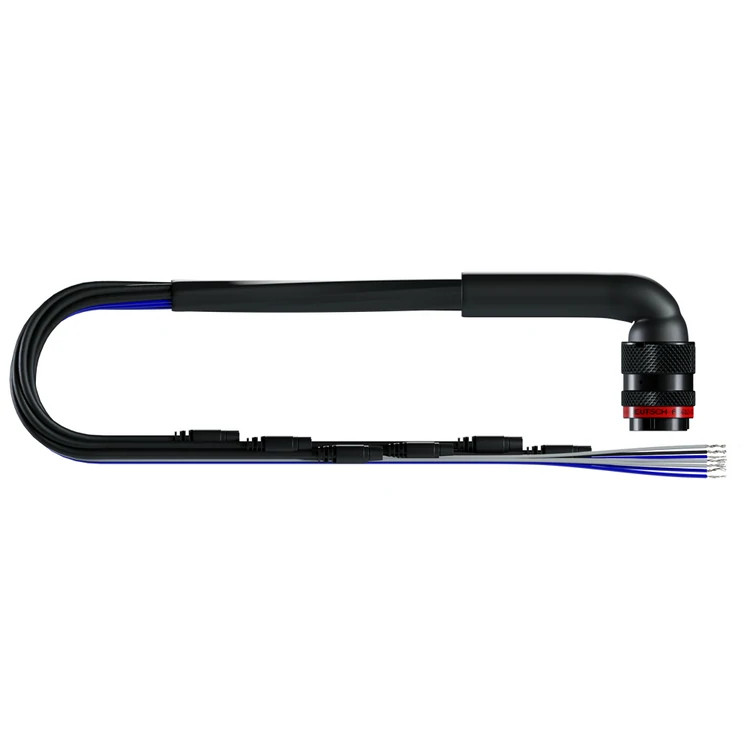

The AiM 90° 22 pin Deutsch harness for the EVO5 is an optional harness to add extra channels (sensors) and advanced functions to your device.

Several of the advanced functions rely on this harness, which is not included with the 37 pin harness which comes as standard with the EVO5.

The AiM 22 pins Deutsch harness functions are listed below:

Analogue sensor channels 5, 6, 7, 8
Digital wheel speed sensor inputs 2, 3, 4
Digital 12V outputs 1, 2
RS232TX

The standard 37 pin harness that comes with the EVO5 allows 4 inputs. If you would like to add more inputs to your race data then add this optional harness.

Adding analogue sensors greater than 4 - The standard harness will allow 4 analog channels (sensors) - (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure, (4) Brake Pressure.

Using the 22 pin harness you can add four more analogue channels (sensors) (5) Steering Angle, (6) Throttle Position, (7) Gear Box, (8) Differential Temperature.

Please Note: If you wish to add extra race data then you will need the 22 pin Deutsch harness. This will add four more analogue channels (sensors). Available in the Accessories Tab.

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

Technical

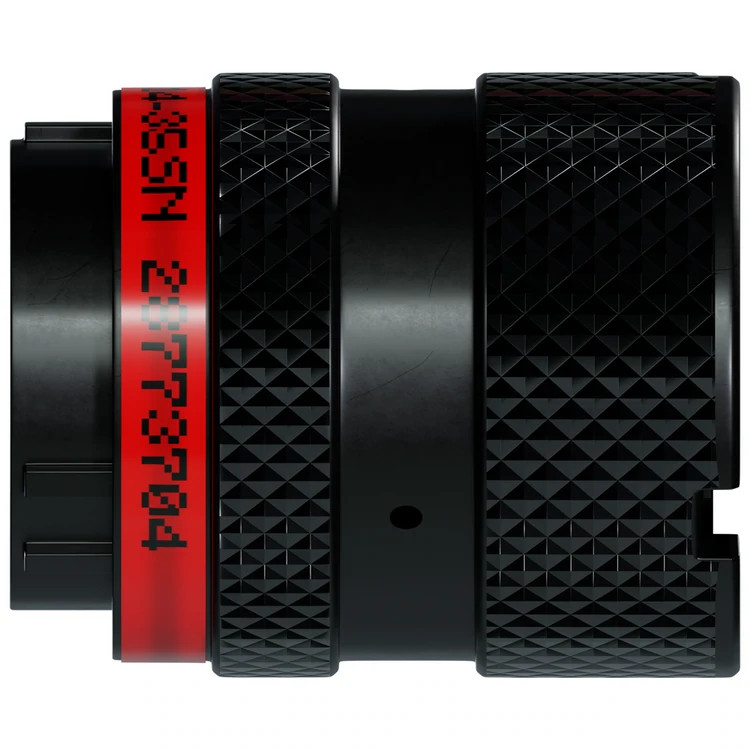

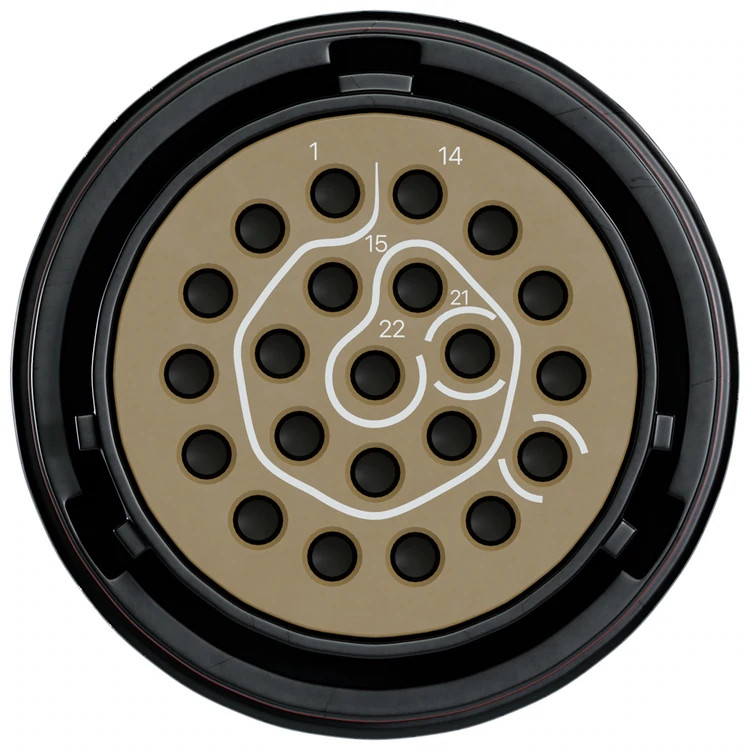

• 22 pin Deutsch Female Flying Connector
• 4 pins Binder 719 Female connector - See table in Downloads Tab
• None ended cables - See table in Downloads Tab
