AiM GS-Dash Car Racing Dash Display

Name: AiM GS-Dash Car Racing Dash Display
Brand: AIM
SKU: X55GSDASH0
Price: 641.3 EUR
Availability: InStock

€530⁰⁰ (VAT excluded)

€641³⁰ (VAT included)

VAT included.

Available in 7-10 days from the order date

Phone orders - 07217224640721722464

Product code - SKU: X55GSDASH0

Description

In the Box

GS-Dash with spiral cable.

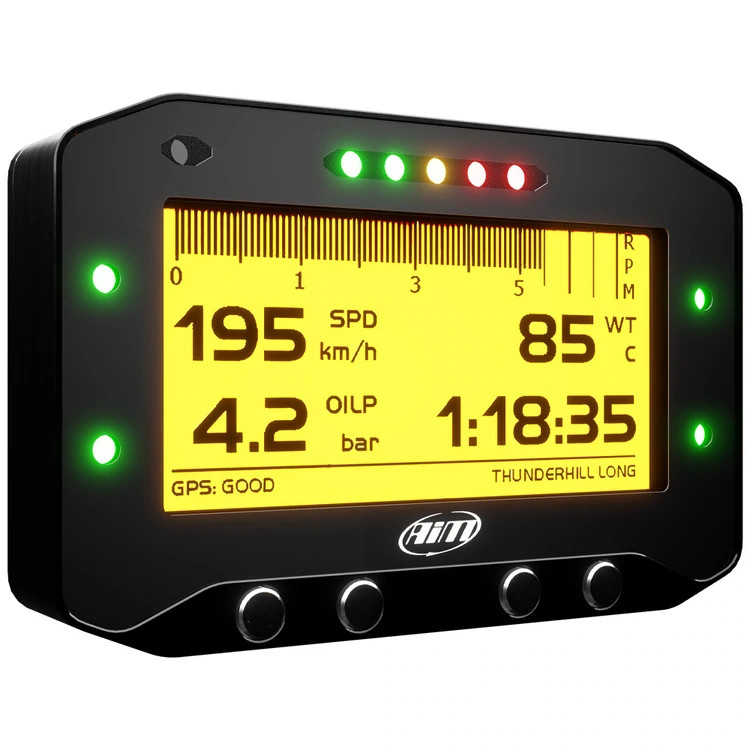

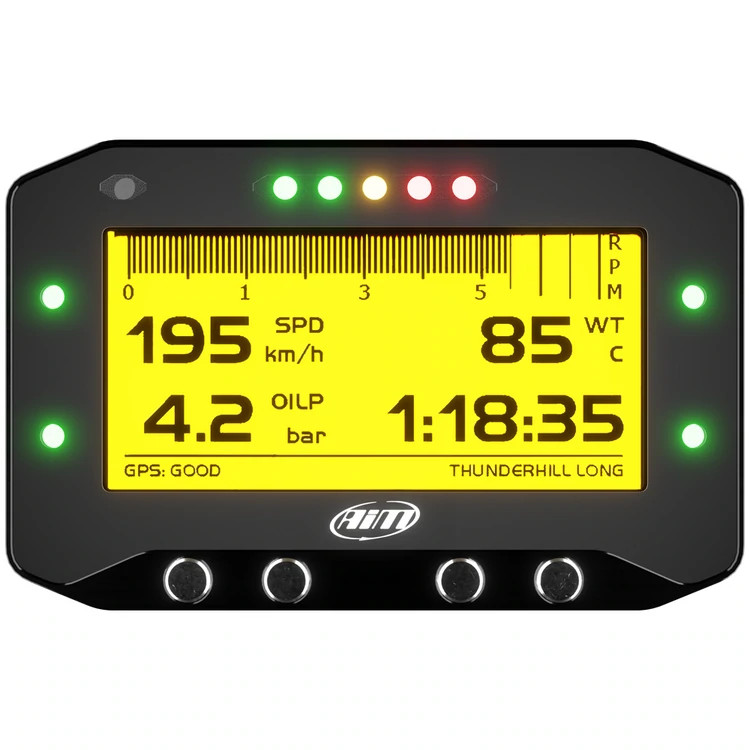

The AiM GS-Dash is a compact, flexible and fully configurable display, working alongside the EVO4S & EVO5 to show you critical performance data.

Key Features :

4.3" LCD screen	7 configurable RGB colours
5 configurable RGB LED shift lights	4 configurable RGB alarm LEDs
5 pin 712 male spiral cable	Works with EVO4 S & EVO5

AiM GS-Dash Car Racing Dash Display

The AiM GS-Dash is a compact, flexible and fully configurable graphical display showing data sampled by our AiM loggers the EVO4S and EVO5.

This dash is small in dimension which makes it particularly suitable for small cockpit installations, such as formula cars and kit cars. It feathers a 5 pin binder 712 male spiral cable which will enable you to connect your EVO4S or EVO5 with minimum effort.

Please Note: This is a display only, and must be connected to an EVO4S or EVO5 Data Logger. Also, the GS-Dash is not compatible with EVO4.

Display

The GS-Dash can be backlit in one of seven available colours, it also features an ambient light sensor that makes brightness and contrast ideal in all light conditions.

The GS-Dash is compact in structure and features a wide 268x128 pixel display to maximise readability.

Configurable Pages & Lap Times

The GS-Dash can swap among pages showing lap times and data in a customizable way to suit your needs. You can choose the data and create pages displaying up to eight fields in each. The RPM, lap time page layout is available to display the RPM graph, lap time and three channels of your choice.

You can visualise the rolling time or static or predictive lap time (as an absolute value or as a difference vs. the best lap).

Configurable Shift Lights & Alarms

The GS-Dash features five RGB shift lights which can be individually configured for each gear, choosing LED colour and RPM threshold values for their activation.

Alarm LEDs are managed in a very flexible way. You can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch off. A warning message can also be shown.

When your session is over you can easily recall your sampled data by your EVO4S or EVO5 data logger.

A key summary is available at the end of each session, the best laps of the session with their times, min/max speed and min/max RPMs.

Keyboard Operations

The GS-Dash can perform some operations via the pop-up keyboard.
Enabling/disabling the backlight
Selecting the nearest track you are racing
Checking GS-Dash firmware version
Deleting the data stored on EVO4S & EVO5

Expand Your System

These are only some of the items that can be added to our GS-Dash for incrementing the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by GS-Dash and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
