AiM Hall Speed Pick Up Sensor 712/719 Plug
Description

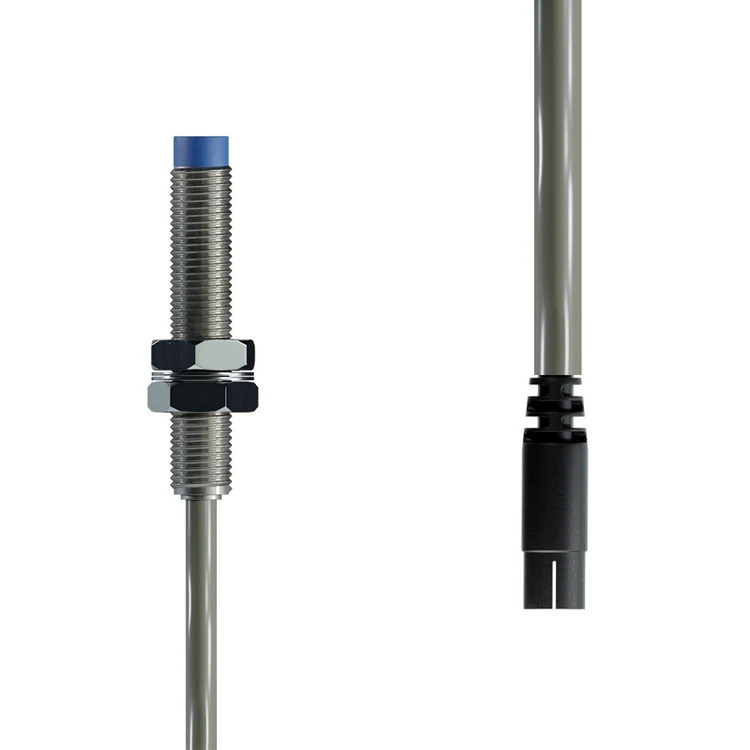

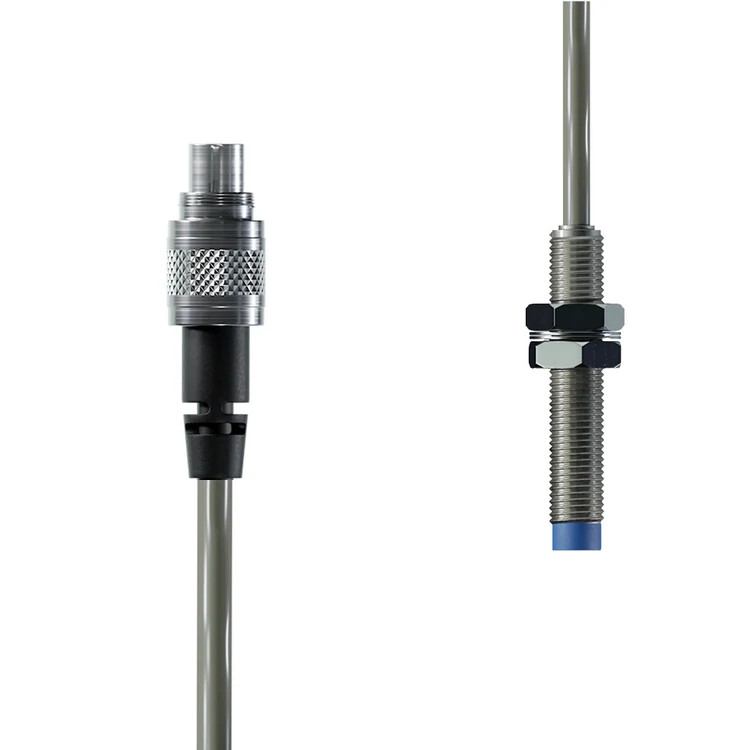

AiM Hall Speed Pick Up Sensor
The AiM non-contact sensor needs a metallic trigger to pass in front of it. It comes with a magnet and locknuts.
Key Features :
| Hall effect wheel speed sensor | 719 or 712 plastic connector |
| 1.7m cable | M8 thread |
AiM Hall Speed Pick Up Sensor
The output varies when it meets a magnetic field. The three-wire sensor produces a digital signal.
The sensor consists of a thin piece of metal that passes a continuous current through it. When the sensor is placed in a magnetic field the electrons move to one side of the metal and protons move to the other side of the plate. You will then be able to get a voltage.
The Hall Effect Sensor is a non-contact device that needs a metallic trigger to pass in front of it. Again, a bracket will usually need to be fabricated to mount the sensor in a suitable position. Please ensure that the distance between the sensor and trigger is in a 0.5 – 2.0 mm (0.007-0.07 inches) range.
The sensor only produces around Severn volts. When the electrons move to one side a potential difference is produced between the two sides of metal.
Connections
719 Connection to suit MXL (Strada and Pista), MXG/MXS/MXP (inc Strada), MXL2. Use a 719-719 Patch Lead to extend to the required length.
712 connection will suit EVO4 Data Loggers.
Technical
- 712 or 719 plug Binder Connector
- Power Supply: 10-30 VDC
- Sensibility Distance: From 0.5 to 2,5mm
- Sensor Thread: M8
- Operating Temperature Range: -25 to 70°C
- Waterproof: IP67
