AiM LCU ONE Analog Lambda Controller

AiM LCU ONE Analog Lambda Controller

€420 00 (VAT excluded)
€508 20 (VAT included)
VAT included.
Available in 7-10 days from the order date
Phone orders - 07217224640721722464
Product code - SKU: X08LCU04AN

Description

In the Box

Kit 1

LCU-One Analog, wide band Bosch LSU 4.9 Lambda Probe, thread iron ring for installation, RS232 cable for analog programming, analog adapter (male 712 metallic connector, male 719 plastic connector), Race Studio 2 software.

Kit 2

LCU-One Analog, wide band Bosch LSU 4.9 Probe, thread iron ring for installation, RS232 cable for analog programming, analog adapter (male 712 metallic connector, male 712 metallic connector), Race Studio 2 software.

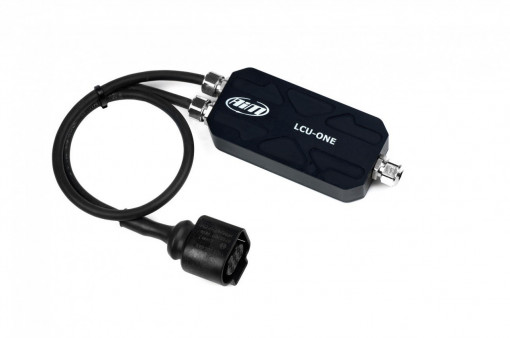

AiM LCU One Analog Lambda Controller

The LCU-One Lambda Probe Controller has been designed to improve engine carburetion to maximize vehicle performance. All controllers are equipped with a Bosh LSU 4.9 broadband lambda probe for the ability to maintain its calibration for the duration, in fact it is designed to last an average of 100,000 km. The LCU-One detects lambda values of between 0.65 and 1.6, therefore very precise for an optimal engine performance. Performing the analysis of the residual oxygen the controller verifies excesses or deficiencies in the carburation by supplying the necessary data to the engine. The AIM lambda probe controller can be used on engines powered by any type of fuel.

LCU-One Analog

It has an analogue output proportional to the lambda value and a serial line for programming the stoichiometric point and the analogue output. To make it even easier to use, these two LCU-One variants turn on / off with your datalogger.

The product provides Lambda value and Air/Fuel ratio and - thanks to the appropriate Lambda Configurator software - LCU-One Analog is able to configure:

  • Analog output (0-5 Volt)
  • Stoichiometric point
