AiM MX Strada Logger Kit with Data Hub & GPS09 Module

AiM MX Strada Logger Kit with Data Hub & GPS09 Module

Name: AiM MX Strada Logger Kit with Data Hub & GPS09 Module
Brand: AIM
SKU: X08MMD
Price: 1476.2 EUR
Availability: InStock

€1,220⁰⁰ (VAT excluded)

€1,476²⁰ (VAT included)

VAT included.

Available in 7-10 days from the order date

Phone orders - 07217224640721722464

Product code - SKU: X08MMD

Description

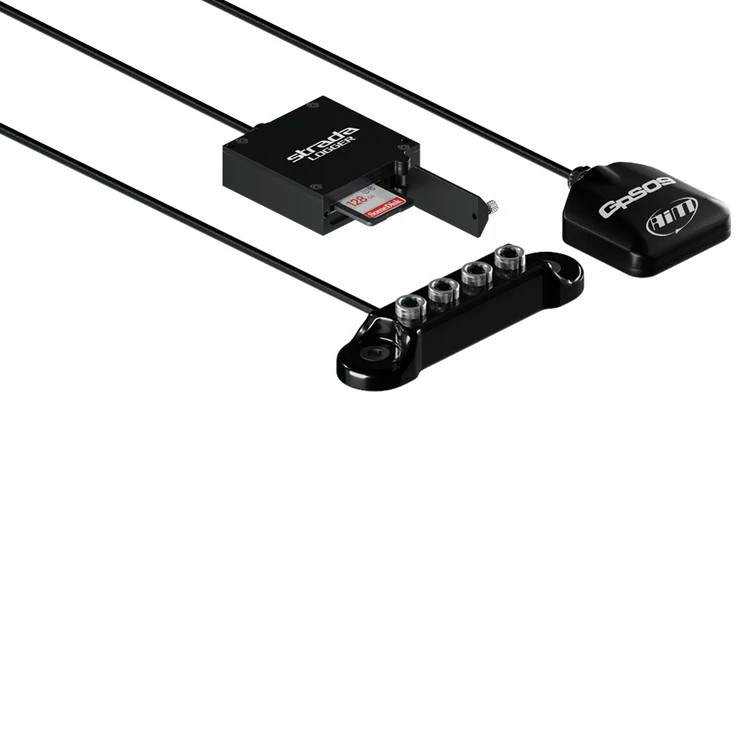

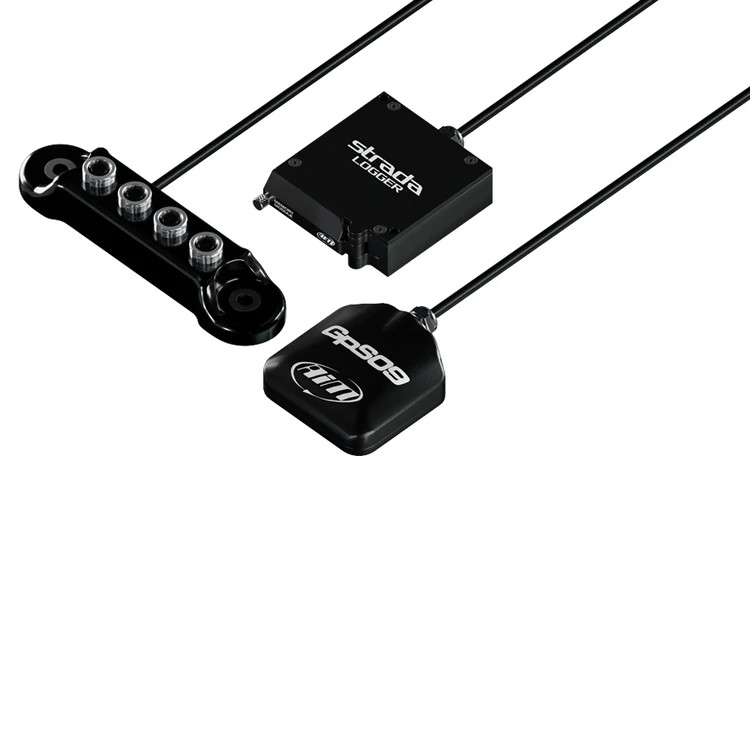

AiM MX Strada Logger Kit, Data Hub & GPS09

With the AiM MX Strada Logger Kit, you can turn any MX Strada into a fully working logger. No configurations just plug it in and you're ready to go.

Key Features :

Turn any MX Strada dash into a fully working logger	GPS09 Module
4-way data hub	Memory module

AiM MX Strada Logger Kit, Data Hub & GPS09

The AIM Strada Track Logger Kit will upgrade and turn any MX Strada (MXS, MXP or MXG) dash into a complete data logger. There is no configuration needed, plug the Strada track logger kit into your dash, and you are ready to go.

You can record all the data from your practice sessions. The race will record all the data from your practice sessions or race onto the data logger, prepared to be downloaded to the powerful Race Studio 3 software for further analysis.

Having the opportunity to review and analyse your data will help improve you as a driver and identify possible improvements in vehicle setup, all of which could take seconds of those lap times. You will save your data on the SD card (supports up to 32 GB memory cards) and stored it in the logger memory.

You can remove the memory card even during a pit stop or with the engine running, so if you are in an endurance race or an extended test session, You can analyse your recorded data whilst you are still on track.

Easy to install into your dash with no configuration. Plug the logger in, and it is ready to record your data.

Features a front LED that shows its status: recording/firmware status

GPS09 Module in the Kit

The AiM GPS technology represents a true revolution in data acquisition. With our GPS software, you can immediately get lap times and all the data needed for improving your driving performance and technique.
The GPS module connects via a CAN cable which makes it quick and simple to install.

The GPS09 Module guarantees precision and reliability, working with almost twenty satellites to improve its performance.
An average of less than one-meter tolerance will determine the position when the finish line is close to another track segment.
The satellite signal is rapidly locked, meaning that the GPS Module is ready to operate after switching on.
No risk of missing signals anymore due to noise or interferences on the system.

GPS technology represents a true revolution in data acquisition. Thanks to the lightweight and waterproof GPS Module and its GPS Manager software, you can immediately get lap times and all data needed for engine tuning and improve driving technique.

The GPS Module is fast in satellite signal acquisition and reliable in adverse situations. GPS Manager allows you to track start/finish lines and splits and download a comprehensive track database. With the GPS Module, you get essential information, i.e. chassis analysis, track position, etc., position, speed, cornering in-line and lateral G and automatic lap times.

The GPS module has a 5 pin Binder male 712 connector.

This kit is available with different GPS cable lengths from 0.50cm, 1.3m, 2m, 4m. The roof version is also available in 2m and 4m options.

Data Hub CAN Connection Multiplier In The Kit

The compact Data Hub provides four additional CAN channels and works as an interface between the AiM logger and its peripheral devices and accessories. Such as the LCU Lambda Controller, GPS Module, TC Hub (thermocouple multiplier), Memory key and SmartyCams.

Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.
The four-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.

The data hub has a 5 pin 712 binder male connector.

Strada Logger In The Kit

The AiM Memory Module is a small SD Card holder connected via CAN bus to the MXL2, MXG, MXP, MXS dashes and the EVO4S and EVO5 modules. It is straightforward to use. Just simply click the Module to your logger, and You will save the data simultaneously both in the logger and on the SD card with no configuration needed.

The SD card can be removed and replaced even during pit stops while the car engine is still on, making it extremely fast to get the data during races or long tests when the time at the paddock is minimal.

When the session is over, all you need to do is remove the SD card from the Module and put it into your PC and download the data using Race Studio 3.

Please Note: SD Cards are not included in the kit.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the Formula Steering Wheel 3 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
