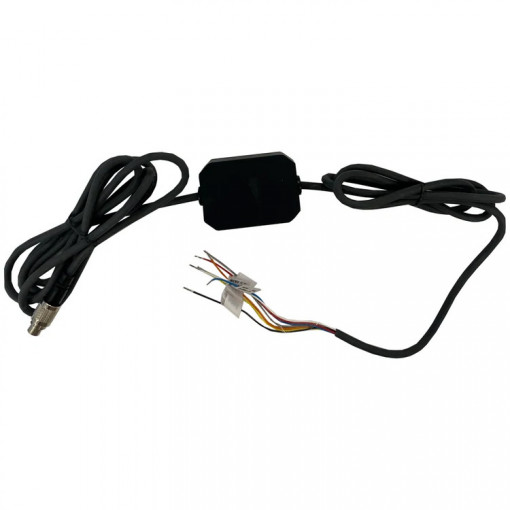

AiM Remote Button Interface
Description
AiM Remote Button Interface
The remote button interface is used to provide easier access to the buttons on our MX range of dashes (MXL2/MXS/MXP/MXG, inc Strada models), particularly useful when the system buttons can be challenging to push or when too far from your reach.
Key Features :
| Suitable for MX Series (inc Strada) | Six Inputs To Connect Push Buttons |
| 712 5 Pin Binder Connector | |
AiM Remote Button Interface
The remote button interface is used to provide easier access to the buttons on our MX range of dashes (MXL2/MXS/MXP/MXG, inc Strada models), particularly useful when the system buttons can be challenging to push or when too far from your reach.
It offers six inputs to connect to 6 different push-buttons. The first four are pre-configured to simulate the systems buttons, and the fifth will turn ON/OFF the backlight and the sixth for resetting the second odometer. The interface has been designed to accept a configuration for changing functionality in case dedicated features are required.
Technical
- Suitable for MXL2, MXS, MXP, MXG Strada
- 4 Configured Inputs to Simulate System Buttons
- 1 Intended to Turn ON/OFF Backlight
- 1 for Resetting the Odometer
- 712 5 Pin Binder Connector
