AiM Spark Plug Inductive RPM Adapter
Product code - SKU
X10ADRPM000
EAN
X10ADRPM000
Costurile de livrare nu sunt incluse. Preturile pot varia in functie de furnizor. Pretul final este afisat pe proforma sau ne puteti contacta.
Description

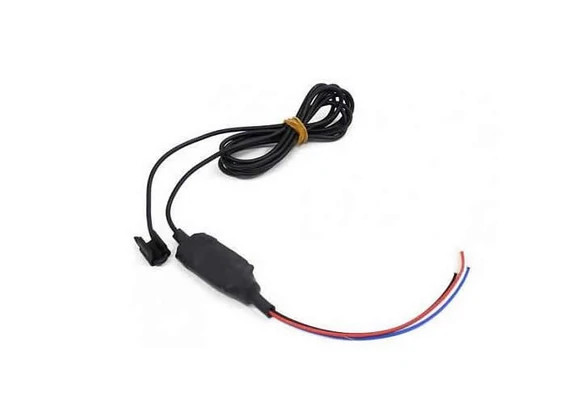

AiM Spark Plug Inductive RPM Adapter
The AiM RPM Adapter has been designed for single cylinder 2 or 4 stroke engines.
The AiM spark RPM adapter has been designed for installation on single cylinder 2 or 4 stroke engines. It is a filter that converts RPM signal sampled by induction from the spark plug in a square wave signal.
The image below shows the signal sampled by induction on the left and the square wave signal on the right.
To install the adapter connect the plastic clip to the spark plug and the cables as follows:
The black cable labelled GND to the device GND pin.
The red cable labelled 9-15 VDC to a +12V output (the battery positive pole for example).
The blue cable labelled rpm to AiM device RPM input.
 |
AiM Spark Plug Inductive RPM Adapter
The drawing below shows the adapter correctly installed.
