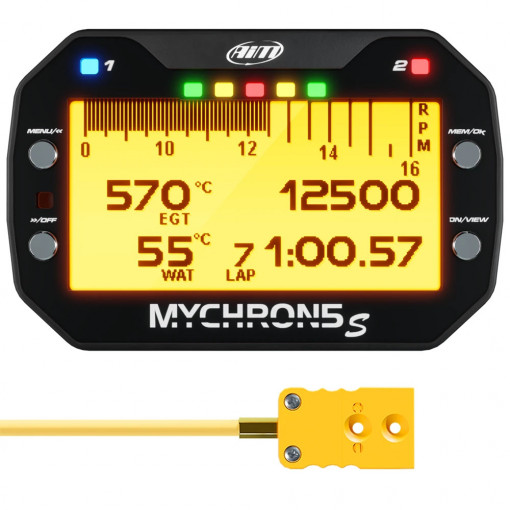

Mychron 5S GPS Lap Timer & Thermocouple Sensor
Description
In the box
MyChron5S, battery charger with cable, RPM cable, 1 temperature sensor + TC extension cable, CD Race Studio 3.
Karting's Favourite System Just Got Better
The AiM MyChron 5S Data Logger is our game-changing piece of kit for thrill-seekers and competitive kart racers, on scaled-down circuits and professional tracks, all you need to do is arrive and drive.
Key Features :
| Integrated 25Hz GPS | Configurable display pages |
| 8 configurable RGB backlights | 2 configurable Alarm LEDs |
| Integrated GPS | 5 RGB LEDs configure for each gear |
| Waterproof | Choice of sensor |
Mychron 5S GPS Lap Timer & Thermocouple Sensor
The latest version of the AiM Mychron 5S has landed. Our game-changing datalogger has been specifically designed for Kart racing whether you're on a scaled-down circuit or a professional full-sized motorsport circuit for thrill-seekers and competitive races this is the datalogger for you.
The GPS frequency has improved from 10 to 25Hz and the precision and accuracy have been improved from about 5 feet to 2.
With integrated GPS this system takes advantage of our global track database, to automatically understand which track you're at. When you get to the track switch on your MyChron 5S and it will determine its position, identify the track and start loading start/finish line coordinates. Even the predictive time is much more reliable thanks to the GPS you will know the exact time gap vs your best lap.
The MyChron 5S Kart lap timer features a high-resolution graphical display with built-in 25Hz GPS to sample and record lap times. The MyChron 5S combined with a choice of Cylinder Head Temperature Sensor and Exhaust Gas Temperature Sensor and RPM connection makes it the ultimate karting lap timer.
The MyChron 5S logs and stores speed, lap times (including split and predictive), gear, temperature, RPM as well as data from the optional sensors when connected to the MyChron Expansion Box, such as throttle position sensors, brake position and pressure sensors, steering angle sensors and the LCU-One Lambda Controller and SmartyCam which are available in our accessories tab.
With this kit, you can choose a thermocouple sensor, choose either a long or short Cylinder Head Temperature Sensor (under plug), M5 Exhaust Gas Temperature Sensor or a T12 Exhaust Gas Temperature Sensor, Only one supplied.
Display
The MyChron 5S has seven display colours to choose from. This will enable you to have a clear view and easily read numerical readouts on the track such as your lap times and lap number, RPM and one temperature value. When your back at the paddock you can scroll through all your data on the display.
The Nylon chassis and metallic pushbuttons guarantee even more resistance to shock and water, while the anti-scratch non-reflecting polycarbonate screen and wider display offer great readability.
The MyChron 5S also features an ambient light sensor providing optimum viewing in diverse lighting conditions, the display brightness is automatically adjusted according to the environment light.
Shift Light & Alarm LEDs
The MyChron 5S features five RGB LED shift lights that can be configured for each gear. You can choose the colour and value threshold for the activation. Or configure them to show your best lap time/split time, monitor the RPM level.
The alarm LEDs are also easily configurable to the engine parameters you require, such as exhaust gas temperature (EGT) and water temperature.
Configurable Pages
There are various options for you to configure your display for whatever suits your viewing. You can do this via the software or the device.
The MyChron 5S has built-in Wi-Fi which enables you to download your data and customise advanced GPS coordinates for split times via Race Studio 3.
You can assign a password so you can securely protect your data.
Rechargeable Lithium Battery
The MyChron 5S is powered by a detachable rechargeable lithium battery. The battery life lasts approximately 10 hours of use.
Expand Your System
These are only some of the items that can be added to our MyChron 5S for incrementing the performance and the data acquired.
Analyse with Race Studio 3
Analysis
With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
