AiM EVO4S Car Racing Datalogger

MXG 1.2 Strada, USB cable, 14 pins standard wiring, 23 pins connector + contacts, Race Studio 3 software.

Kit 2
EVO4S, GPS09 Module (different lengths, see below), 1 power cable, 1 digital output + RPM  cable, 1 OBD2 cable (CAN + K-Line), 1 USB cable, mounting bracket, Race Studio 3 software CD.

The EVO4S is a powerful and flexible data logger, offering a wide range of sources for your data. A great tool for track days to help improve your performance.

Key Features :

AiM EVO4S Data Logger

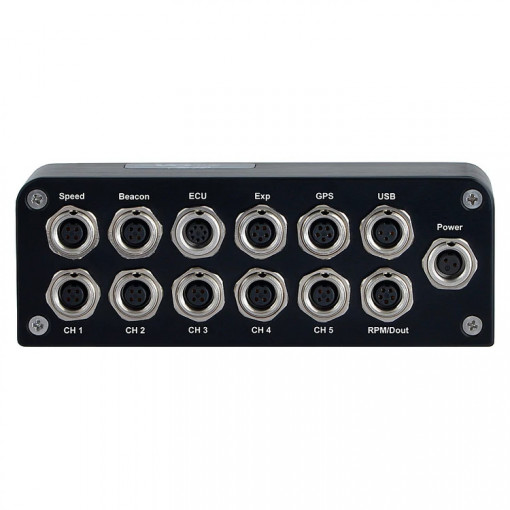

The AiM EVO4S is a powerful and flexible data logger and comes equipped with a GPS Module. Offering one connector per channel the EVO4S samples all the information you need, data coming from your vehicles ECU via CAN, RS232 or K-Line, from the internal accelerometers and gyro and the GPS Module included in the kit.

From analogue/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analogue channels, to the RPM input and to 2 wheel speed inputs.

Select which harness you require CAN, RS232 or OBD11, and select which GPS Module best meets your requirements. You can also upgrade your kit with our GS -Dash display and Formula 3 steering wheel, allowing you to really improve your performance on track days.

Sensors

5 fully configurable analogue channels with configurable 12-bit o-5 Volt, 0-5000 mV inputs or thermocouple input, used to sample data coming from the temperature, pressure, suspension and other sensors.
2-speed inputs which will allow you to monitor different wheel behaviours.
Tri-axial accelerometer and gyro is a built-in inertial platform that allows you to understand oversteering, understeering and banking etc.
2 CAN Interface allow you to send messages directly to an existing CAN network to help improve the range of vehicle control possibilities.
4GB memory
ECU interface - CAN-Bus, RS232, K-Line and OBDII
RPM input manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).

Add optional expansion modules

You can add optional expansion modules via the built-in CAN bus.

Channel Expansion: Permits to add 4 0-5volt analogue channels for pressure, temperature sensors and potentiometers (suspension, steering angle). Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub: Adds up to four "K" type thermocouple temperature sensors.

LCU-One Lambda Controller: Wideband Lambda controller LCU-one, with Bosch LSC 4.9 probe provides air/Fuel data, lambda value and exhaust gas temperature.

SmartyCam HD/GP HD Cameras: Onboard cameras that overlay onto all your videos all the data sampled by your logger.

Expand Your System

These are only some of the items that can be added to our EVO4S for incrementing the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by EVO4S and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
