AiM Kart Brake/Accelerator Pedal Position Sensor
Descrizione
In the Box
Sensor, adapter cable (for MyChron Expansion or eBoxExtreme), installation bracket kit.
AiM Kart Brake/Accelerator Pedal Position Sensor
The AiM Brake/Accelerator pedal position sensor provides a precise indication of pedal position.
Key Features :
| Gives a precise indication of the pedal position |
Can be connected to both MyChron Expansion and eBox Extreme |
| Complete with brackets and fittings |
AiM Kart Brake/Accelerator Pedal Position Sensor
The AiM non-contact throttle/brake position sensor is suitable for all AIM MyChron kart dash/data loggers (MyChron5 S, MyChron5 and MyChron4 (both single and two temp versions) or eBox Extreme. The sensor comes complete with the patch lead required to connect the sensor to the MyChron expansion box, the standard method of connecting additional sensors to your system.
The position sensor can be used for the throttle or the brake pedal, representing critical support for kart drivers. Providing a precise indication of timing and intensity of acceleration or braking allowing you to understand if the driver is accelerating/braking at the right moment and with the correct strength. An essential fact to evaluate driver behaviour and improve their performance.
Main Functions
Measures travel and show all values in percentage in a 0 to 100% range.
An effortless way to evaluate a drivers behaviour and improve their performance
Provides a precise indication of timing and intensity of braking and acceleration
Robust and water-resistant
The sensor measures the distance between two points using a pedal position sensor. It gives an exact indication of the pedal position, measures its travel and shows all values in percentage in a 0 to 100% range.
Technical

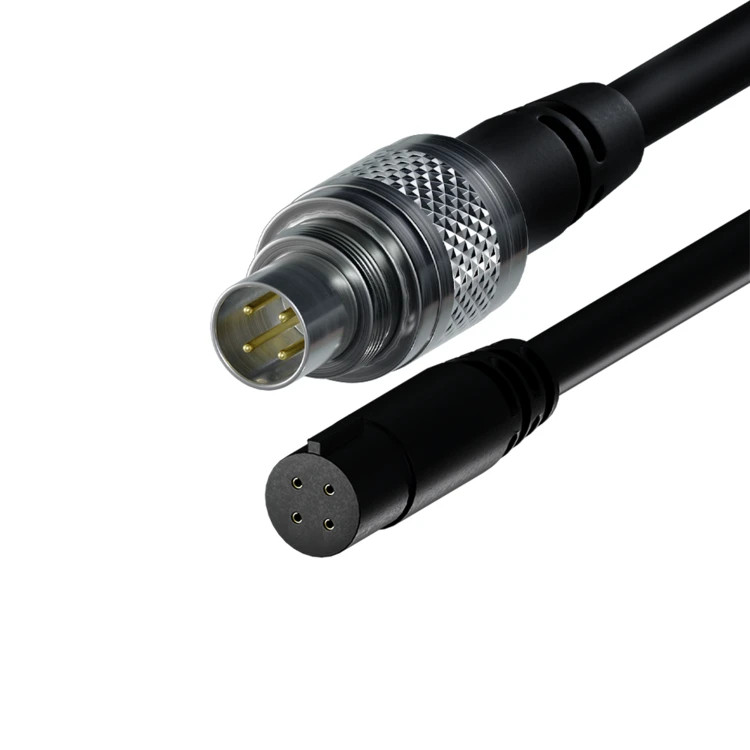

The cable of kart brake/accelerator pedal position sensor ends with a 4 pins plastic Binder connector. It can be connected to both MyChron Expansion and eBox Extreme, which have metal connectors. This is why you need to purchase it with the correct extension cable.
Available kits are:
Kit for connection with MyChron Expansion includes:
-
1 sensor (1)
-

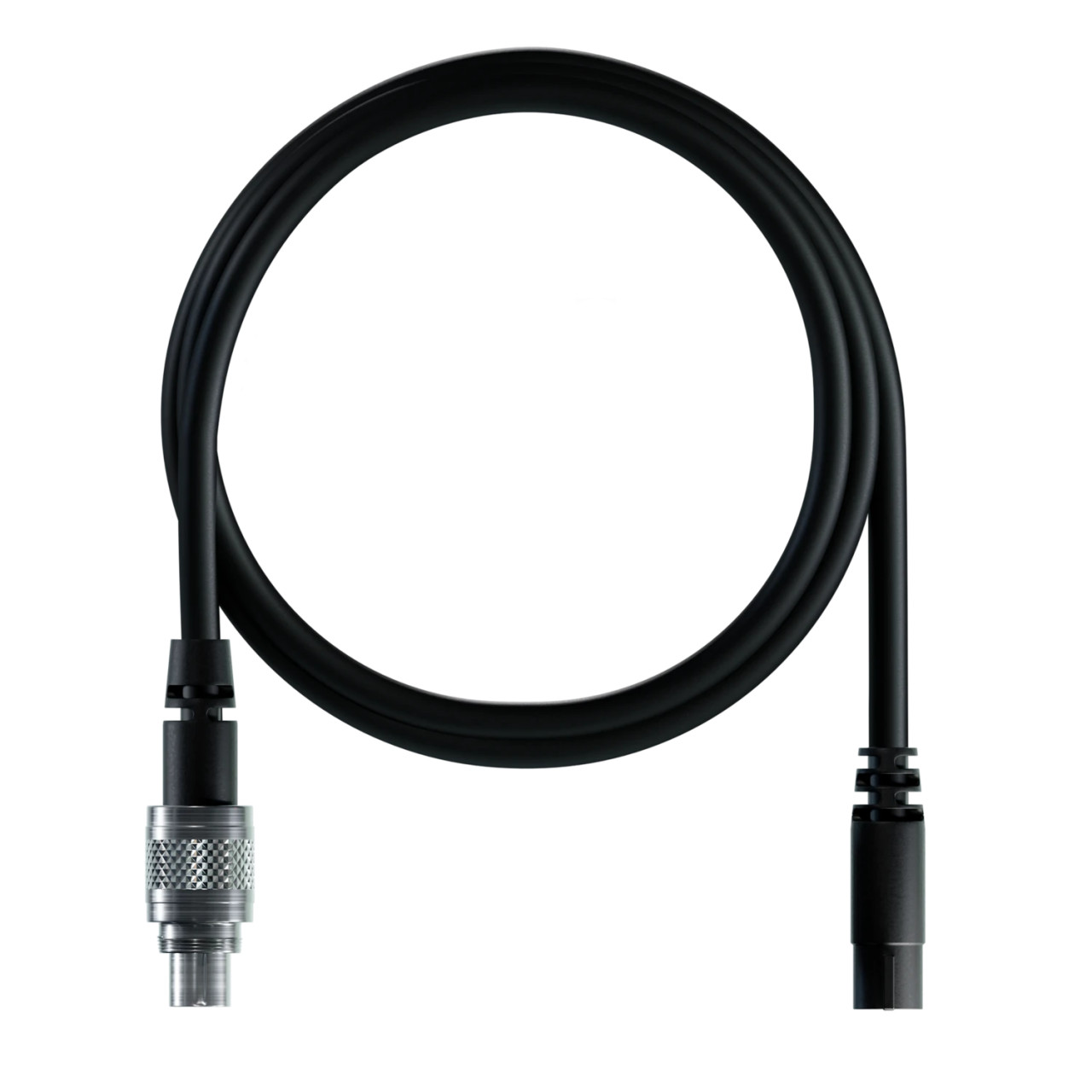

1 – 150 cm extension cable (2)

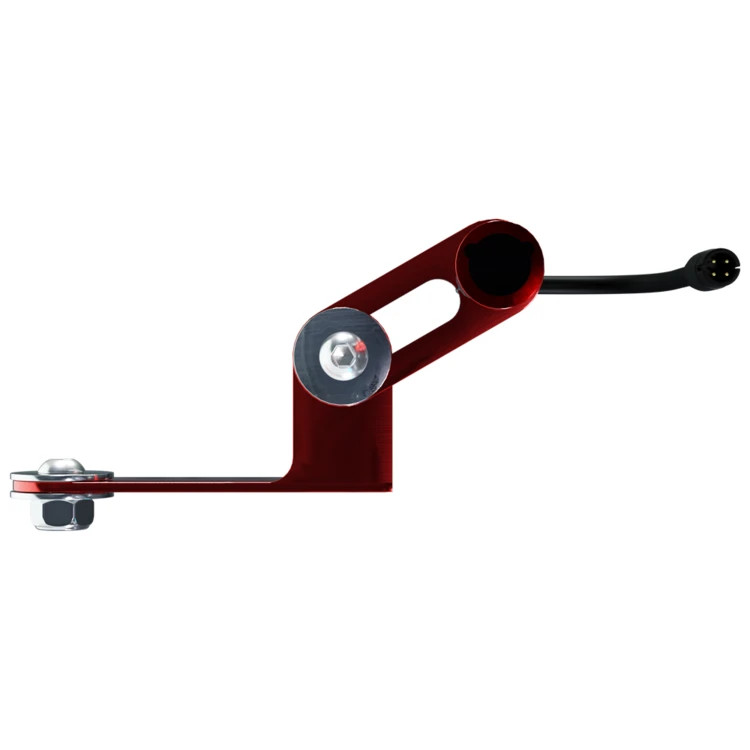

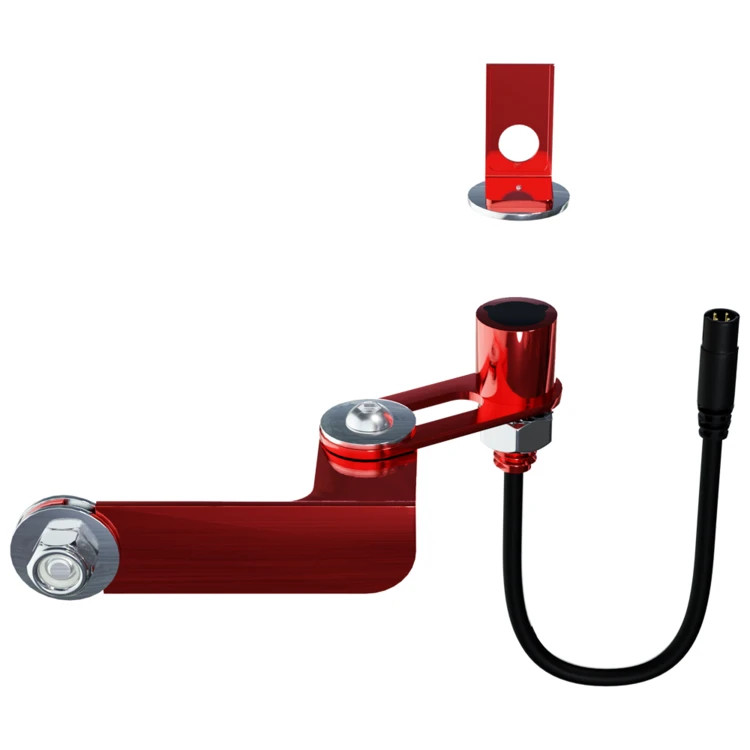

- 1 bracket kit (3) including 1 magnetic bracket 1 “L” bracket, 2 washers, 1 M6x16 Allen screw, 1 nut
Kit for connection with eBox Extreme includes:
-
1 sensor (1)
-
1 – 100 cm extension cable (2)
-
1 bracket kit (3) including 1 magnetic bracket, 1 “L” bracket, 2 washers, 1 M6x16 Allen screw, 1 nut
