AiM Mirror & Reversing Camera for MX Series & PDM
Descrizione
AiM Mirror & Reversing Camera for MX Series & PDM
Our AiM innovative camera will turn your dash display/dash logger into a rear view mirror or reversing camera. Ideal for sports or race cars with limited view.
Key Features :
| Ideal for vehicles with limited view | Suitable for MX Series and PDM |
| 5 pin male binder connection | Park overlay function |
Mirror/Reversing Camera

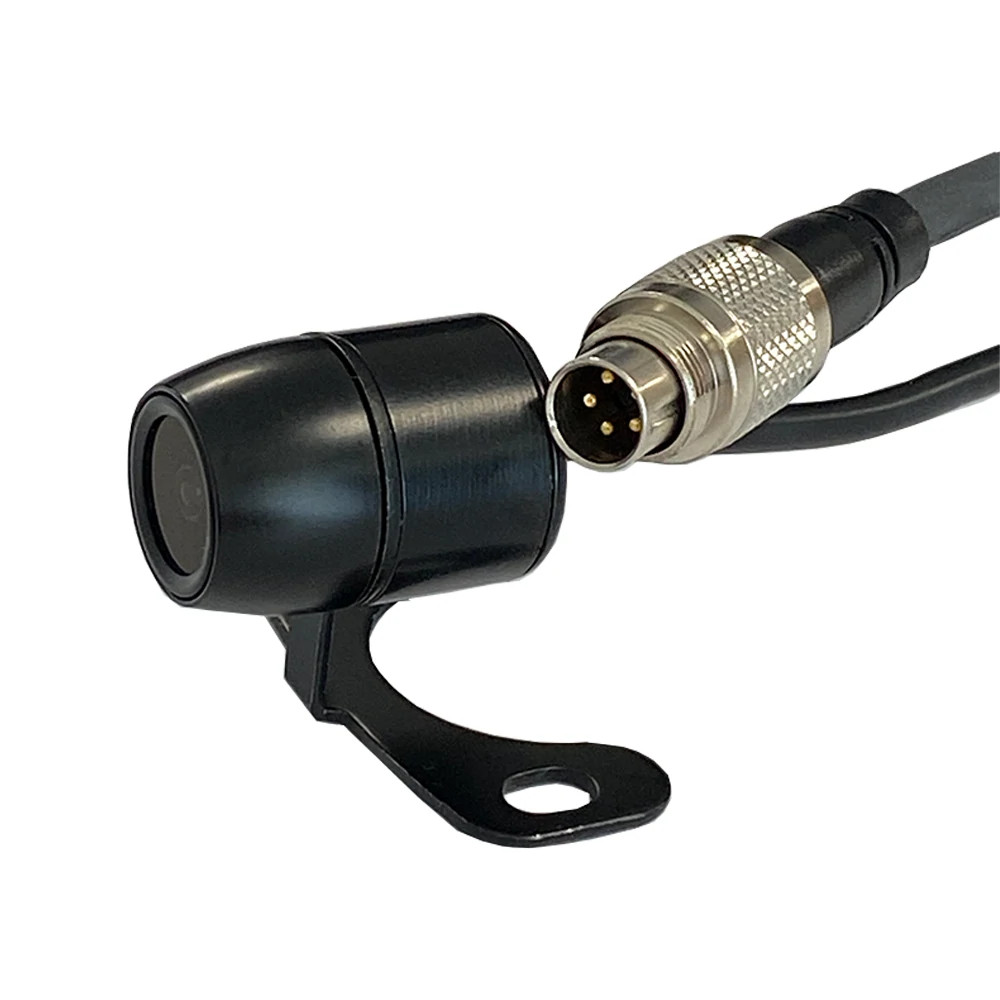

This camera fits the AiM MX Series dash displays and loggers and our PDM with mirror camera input port.
Plug & play connection via patch lead, these are available in the options. Up to two cameras can be connected to any MX Series dash display/ dash logger to show different perspectives. A park overlay function can be activated for an additional aid when tour reverse parking.
The camera is supplied with a short lead so a patch lead is usually required for installation. (Patch cables Sold Separately)

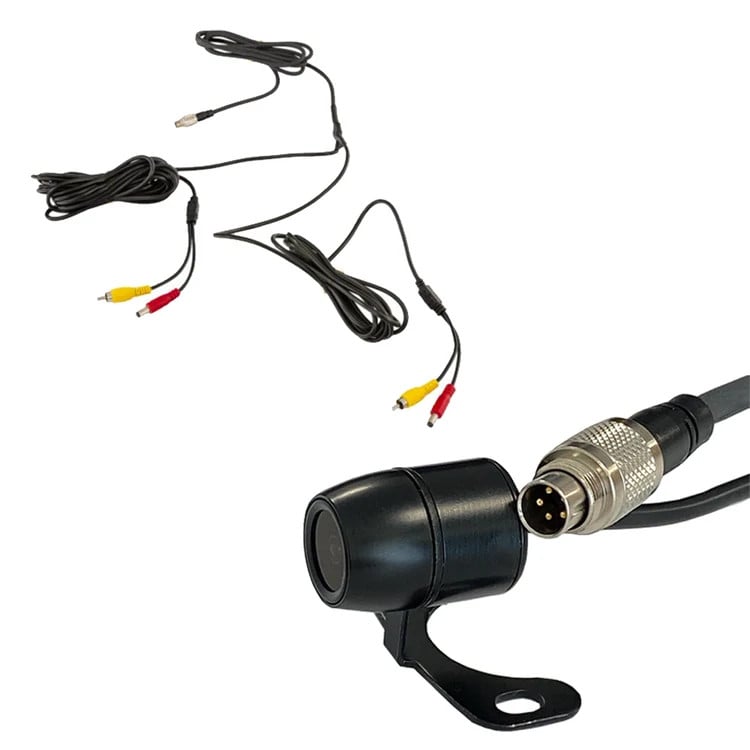

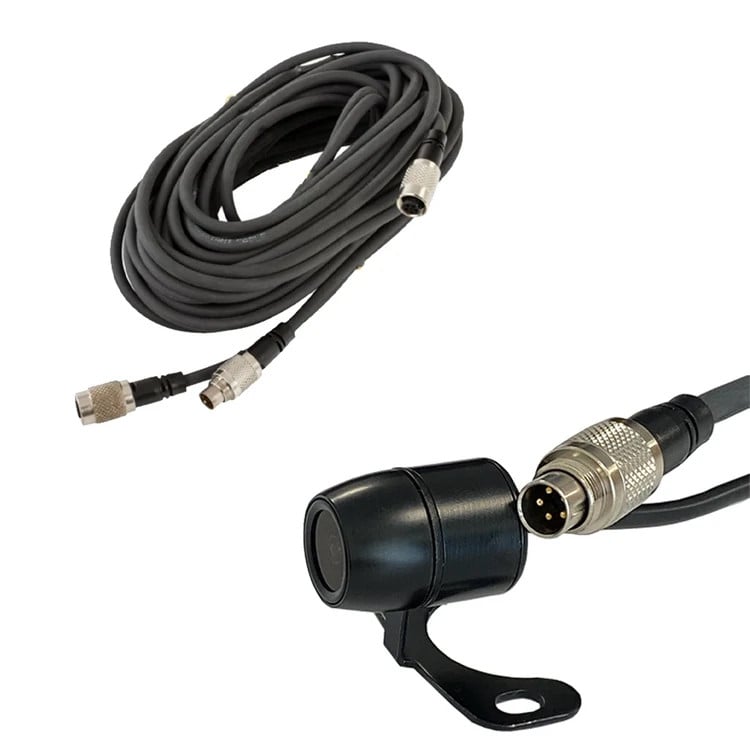

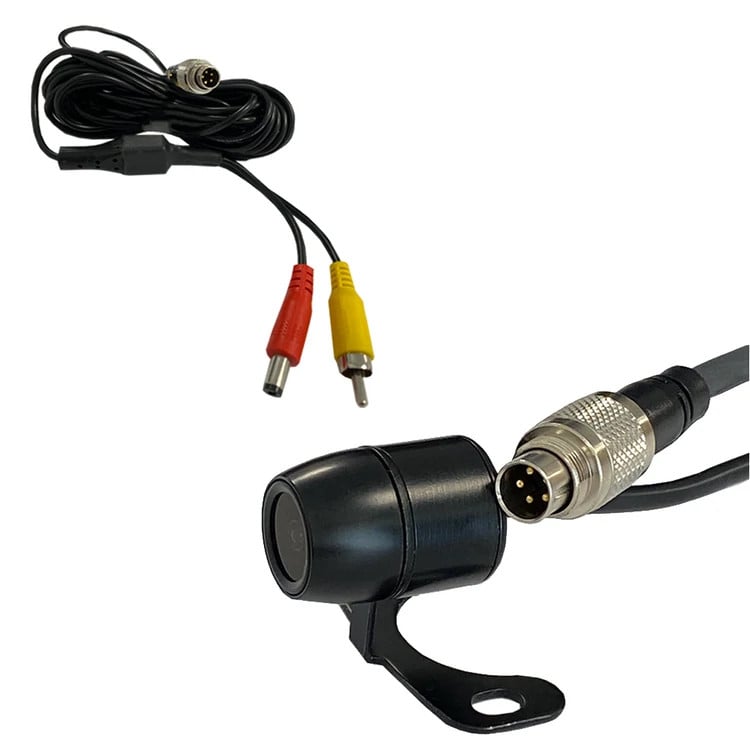

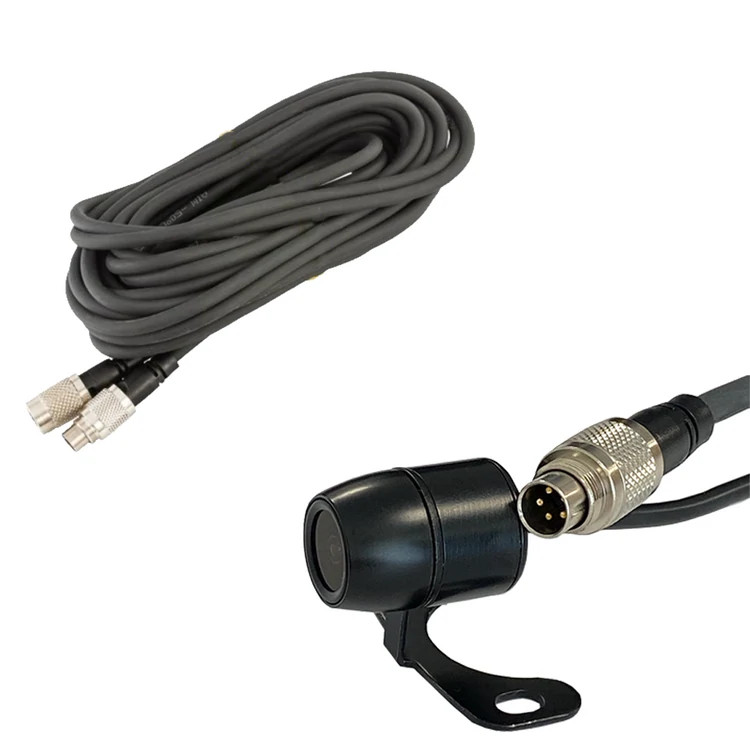

The patch cables are available in four different options depending on your requirements: Single camera for connecting 1 x AiM reversing mirror camera. 2 x Cameras for connecting 2 x AiM reversing mirror cameras. Single RCA for connecting a single other brand camera with RCA connection. 2 x RCA for connecting 2 x other brand cameras with RCA connection.
Please Note: Long lead length for running from the front to the back of the car - AiM patch cable are 6m in length, RCA patch cable is 5m in length.
The camera is supplied with a base mount bracket for mounting to a flat surface. Mounting through a panel is also possible and a correct sixed hole is provided to faciliatae this.
Expand Your System
These are some of the items that can be added to your car for incrementing performance and data.
Technical
- Optical Format: 1/4 inch colour CMOS
- TV System: NTSC
- H-FOV: 170°
- Pixel Array: 648 (H) x 488 (V)
- Frame Rate: 60 fps
- Temperature: -30/80°C
- See the Technical Sheet in the Downloads Tab for the different patch cable drawings.
