AiM MXS 1.2 Strada 5" TFT Dash Display with Race Icons

The MXS 1.2 Strada is one of our most widely used dashes on tracks and roads all over the world. The MXS 1.2 Strada has a 5" colour TFT display that offers a great visual impact. You can configure the dash to show all the information coming from the ECU, analogue /digital inputs, predefined math channels and an optional GPS Module.

The MXS 1.2 Strada is available with a choice of connection. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the vehicles ECU or OBDII port or directly to the ECU through the CAN channel.

Easy Connection

Connecting the MXS 1.2 Strada dash to your ECU is simple. You can sample and display dozens of channels straight from the vehicles ECU. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors. The sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio). The list of available ECU drivers is 1000+ and is constantly being updated and upgraded.

Digital Outputs

The MXS 1.2 Strada features 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue /digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN output you can send messages directly to an existing  CAN network to improve the range of vehicle control possibilities.

Display

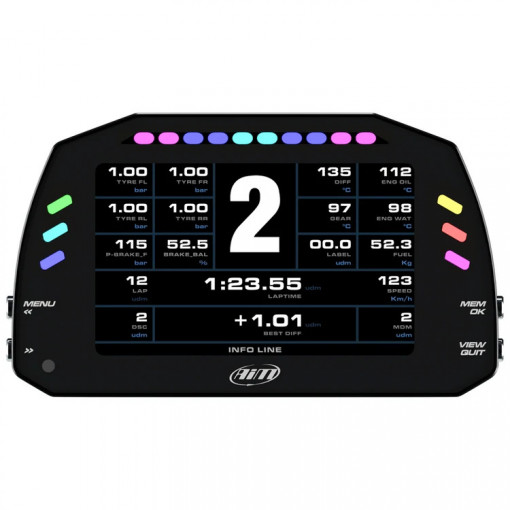

The MXS 1.2 Strada has a 5" TFT high contrast colour display. The visual quality is optimized by the ambient light sensor which keeps the backlight at the best brightness levels.

Pre-configured Pages

The MXS 1.2 Strada shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can custom pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy just use the pushbuttons.

Flexible Shift Light & Alarms

The ten multi-coloured RGB shift lights can be customized to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.

Camera Inputs

Two analogue camera inputs are available, to switch your display into a mirror camera, through a pushbutton command or event management. The camera is sold seperatley.

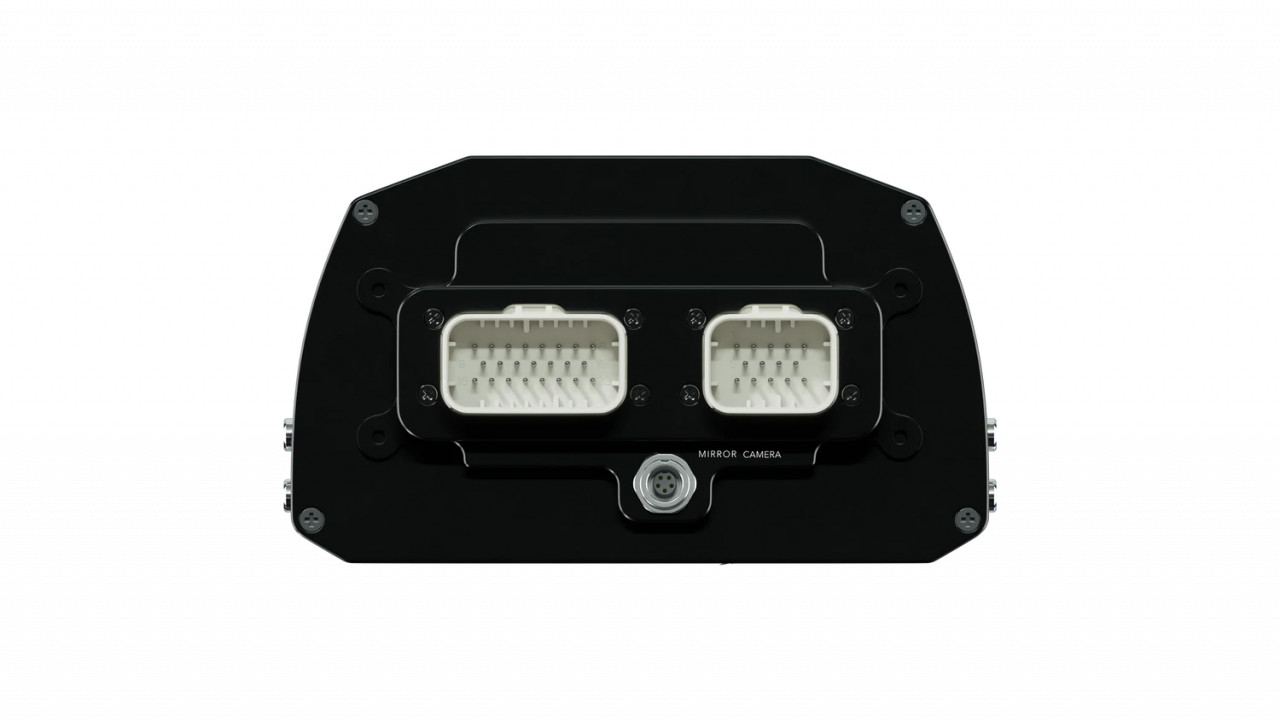

Pin Harness

The MXS 1.2 Strada has a choice of ECU connection. Choose between the OBDII or K-Line CAN. Depending on whether you want to connect to the vehicles ECU using the OBDII port or directly to the ECU through the CAN channel.

Expand Your System

These are only some of the items that can be added to our MXS 1.2 Strada for incrementing the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS Strada and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
