AiM Oil / Fuel Pressure Sensor M10 0-5 Bar

Descrizione

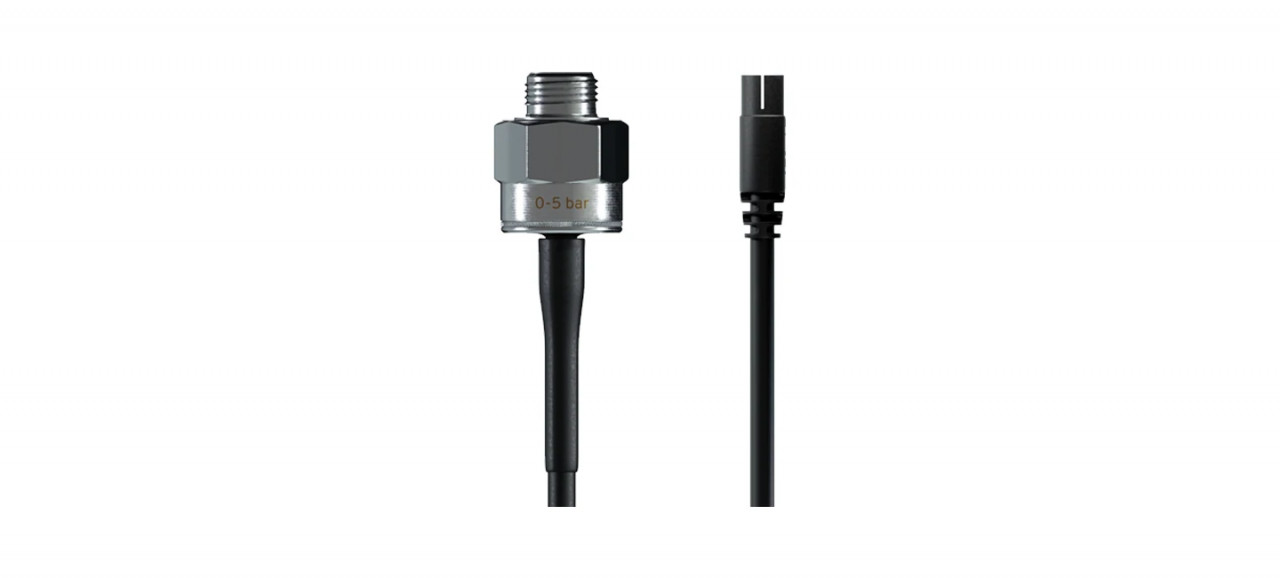

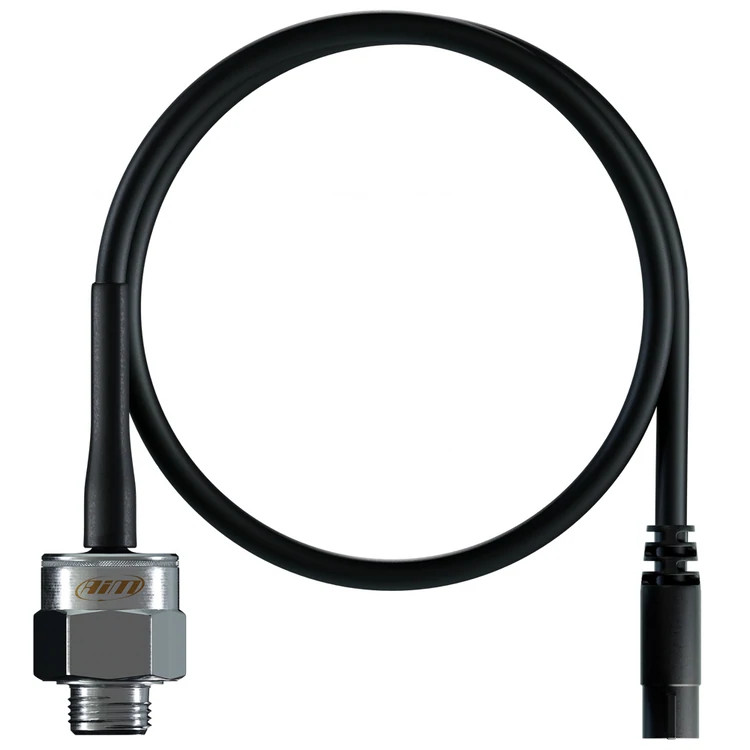

AiM Oil / Fuel Pressure Sensor M10 0-5 Bar

The AiM M10 pressure sensor is suitable for oil, fuel and water pressure readings, reading pressures up to 5 bars.

Key Features :

AiM Oil / Fuel Pressure Sensor M10 0-5 Bar

The M10 0-5 bar pressure sensor is suitable for oil, fuel and water pressure readings, reading pressures up to 5 bars.

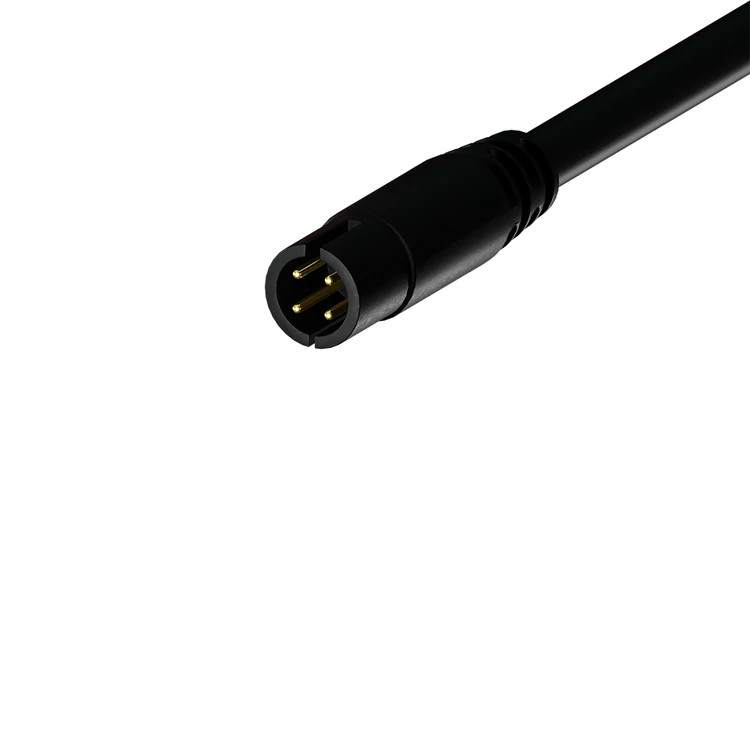

The M10 - 0-5 bar pressure sensor is fitted with a male four pins 719 binder connector to suit our loggers and dash display/loggers.
Many aspects affect the various engine pressures, so knowing your engine has the correct amount of pressure is paramount to longevity and performance.

This sensor is also available in a 0-5 Bar 3/8 24. Available in the Car Sensors tab.

Connections

MXS, MXG, MXP, MXL (Strada & Pista), MXL2, EVO5, MXm harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, you will require our 719-719 patch lead available in various sizes from 0.5m - 4 meters in length. For most installations, you will need one of these patch leads.

EVO4, EVO4S Data Logger, Channel Expansion are fitted with 712 connections and require a 712-719 patch lead to connect the sensor. This patch lead is available in 0.5m - 4-meter lengths. Patch leads are available in the optional extras.

Technical

• Supply: 8-16V
• Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
• Characterisation: 500 mV/ 0 bar 4500 mV/ 5 bar
• Consumption: < 10 mA
• Temperature working range: from -20°C to 135°C
• Sealing: IP66
• Housing: 316 stainless steel
• Weight: 30g
• Cable Length: 400mm
• Thread: M10
