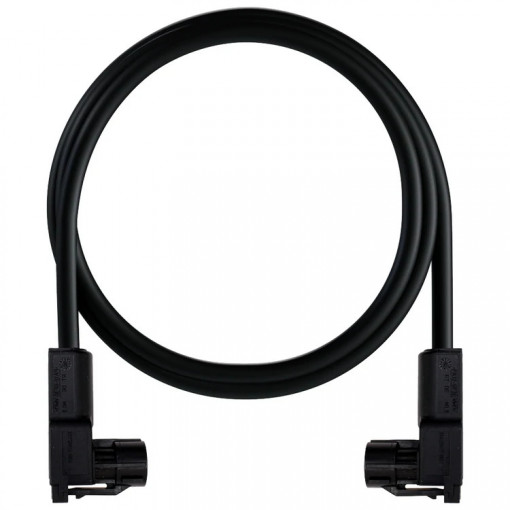

AiM PDM32 Dash LVDS Connector Cable
Descrizione
AiM PDM32 Dash LVDS Connector Cable
The PDM has an external high-speed link used to manage the remote display.
Key Features :
| Suitable for PDM32 | Transmits to a remote display |
| Receives light sensor data | Reliable to power display |
AiM PDM32 Dash LVDS Connector Cable
The PDM has an external high-speed link used to manage the remote display. The connection transmits to the remote display all the TFT information and the status LEDs activity. On the other side receives from remote display light sensor data and push buttons status.
The same link will also power the remote display, making a simple and reliable connection. Rosenberger connectors allow high immunity noise levels and IP67 class connection.
The connection cable is available in two lengths, 2m or 4m.
Please refer to the Downloads Tab for User Guides and all the information and connections advice needed.
Optional Extras
Add extra devices to your system to give additional data and improve your racing performance, such as GPS Module, Channel Expansion, TC Hub, SmartyCam HD, Lambda Controller, Remote I/O Pushbutton Module, Formula Steering Wheel, TPMS System, Keypads.
Technical
- Mechanical Data:
- Mating cycles > 25
- Engagement Force < 30 N
- Engagement Force Waterproof: < 40 N
- Disengagement Force: > 5 N
- Retention Force Latch: > 110 N
- Retention Force Primary Lock: > 80 N
- Retention Force Secondary Lock: > 60 N
- Polarization Feature Effectiveness: > 80 N
- Environmental Data:
- Temperature Range: -40°C to + 105°C
- Thermal Shock IEC 600068-2-14
- Vibration IEC 60068-2-64
- Mechanical Shock IEC 60068-2-27
- Temperature & Humidity USCAR 2-3 5.6.2 Dry Heat IEC 60068-2-2
