AiM Tyre Temperature Sensor Kit
Descrizione
In the Box
IR temperature controller, four tire temperature sensors, power cable, two 4 pin 712+719 patch cables 1 m length, two 4 pin 712+719 patch cables 2 m length
AiM Tyre Temperature Sensor Kit
The AiM Tyre Temperature Sensor Kit has been specifically designed to measure the surface temperature of your tyres.
Key Features :
| Provides important chassis tuning information | Connection via CAN |
| Four temperature sensors | One status LED |
| Suitable for MyChron5 S & MyChron 5 S 2T | Two 4 pin 712-719 patch leads 1m |
| Two 712-719 4 pin patch leads 2m |
AiM Tyre Temperature Sensor Kit
The AiM tyre temperature sensor kit is the ultimate Kart temperature kit to measure the tyres' surface temperature, which provides essential information for kart chassis tuning, tyre exploitation, and driver behaviour. The sensors with a 35-degree field of view measure temperatures between -20 and 120 degrees and provide a 0-5V output signal.

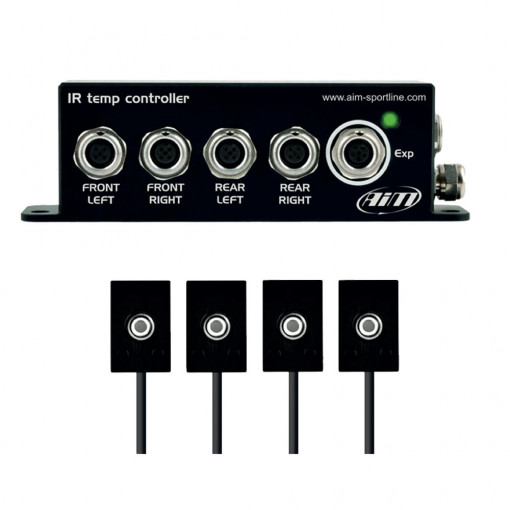

The kit comes supplied with an IR temperature controller, power cable, 4 x tyre temperature sensors and all connection cables.
Connection
The Tyre Temperature Sensor Kit doesn't need any configuration. Once connected to the MyChron5, The information is automatically recognised by the system and data sampled can be downloaded with Race Studio 3.
To view the sampled data on your MyChron5 display, you will need to create a custom page and set the visualisation of sampled data on it.
Optional Extras
The AiM Tyre Temperature Sensor Bracket Kit is available to help with the mounting & installation of the tyre temperature sensors.
Spare Tyre Temperature Sensors are available should you wish to carry spares. 712-719 4 pin patch leads are also available to purchase if reserves are required.
Available in the Accessories Tab.
Tyre Temperature Sensor Bracket Kit - Optional Extra
The Tyre Temperature Sensor Kit is available to buy in the accessories tab. It is required to help with the installation of the sensors onto the Kart. Please see the images in the User Guide for complete installation instructions.
Expand Your System
Above is an example of devices that you can add to your system to enhance your racing performance.
