Ducati 848, 1098, 1198 AiM Solo 2 DL & EVO4S Logger Plug & Play Cable
Descrizione
Ducati 848, 1098, 1198 AiM Solo 2 DL & EVO4S Plug & Play Cable

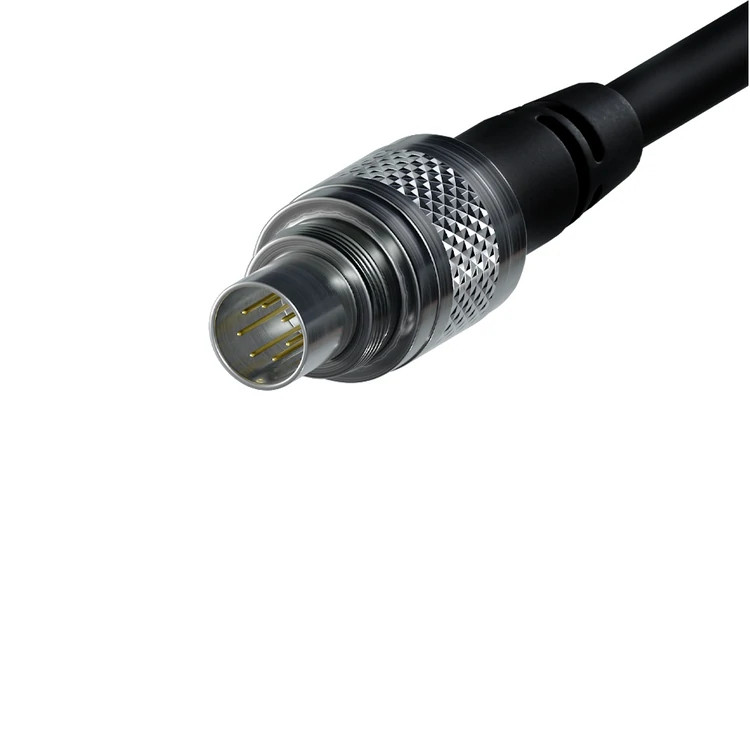

The AiM ECU plug & play cable has been specifically designed for Ducati bikes. Allowing easy installation to a Solo 2 DL and EVO4S Data Logger. With a 7-pin 712 male binder connection.
Key Features :
| Ducati plug & play cable | 7 pin - 712 male binder connection |
| Receive data | Suitable for Solo 2 DL & EVO4S Data Logger |
Cable for:
- Ducati 848, 1098, 1198
- Ducati 899, 959, 1199, 1299 Panigale
- Ducati Hypermotard 796, Multistrada 1200

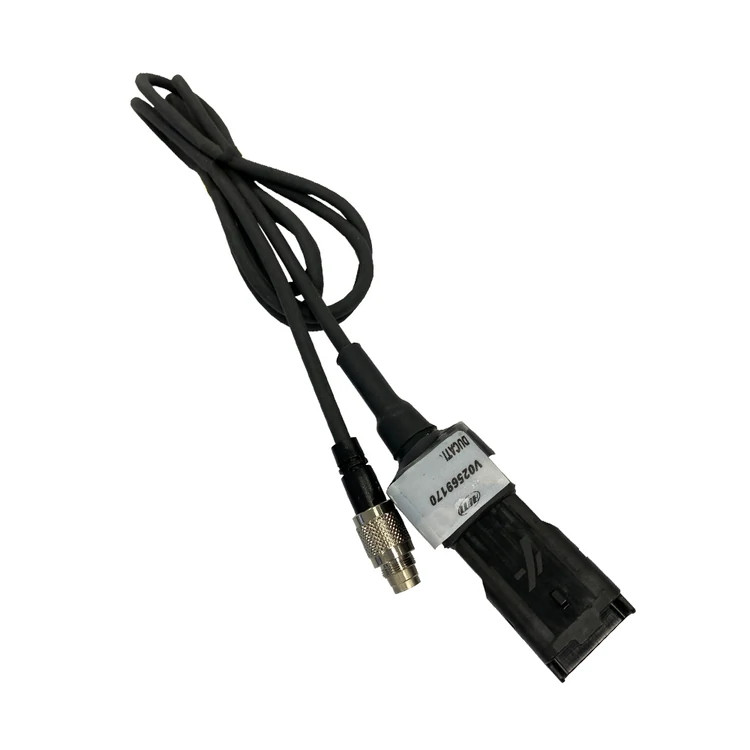

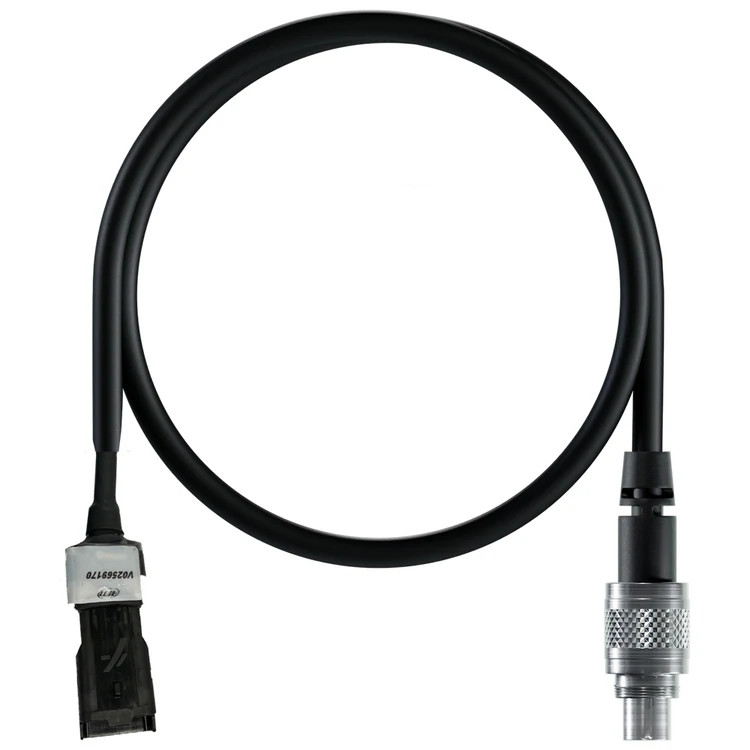

Ducati Plug & Play ECU Cable
The AiM ECU plug & play cable has been specifically designed for the Ducati bike. This plug & play cable can be used for the Solo 2 DL and EVO4S Data Logger.
The cable is an easy fitment to your bike and allows ECU data to be logged.
Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.
Plug & Play
The plug & play cable currently fits the following Ducati bike models:
 |
|
|---|---|
| 848 Base/EVO/EVO Corse - 2007-2013 | 1098 Base/S/S Tricolore/R - 2007-2009 |
| 1198 Base/S/S Corse/R Corse/SP - 2009-2011 | |
Example data protocols
Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.
Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.
Expand Your System
These are some of the items that can be added to your bike for incrementing performance and data.
Technical
- Below is a pinout drawing for the Ducati 848, 1098, 1198 plug & play connection cable
