Suzuki GSX-R 600, 750, 1000 AiM Solo 2 DL & EVO4S Logger Plug & Play Cable

Descrizione

Suzuki GSX-R 600, 750, 1000 Solo 2 DL & EVO4S Plug & Play Cable

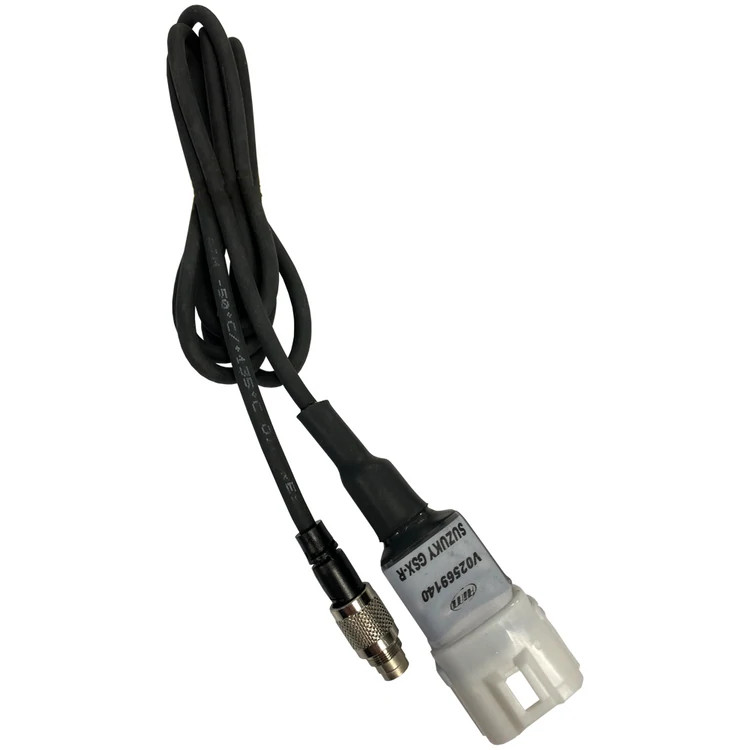

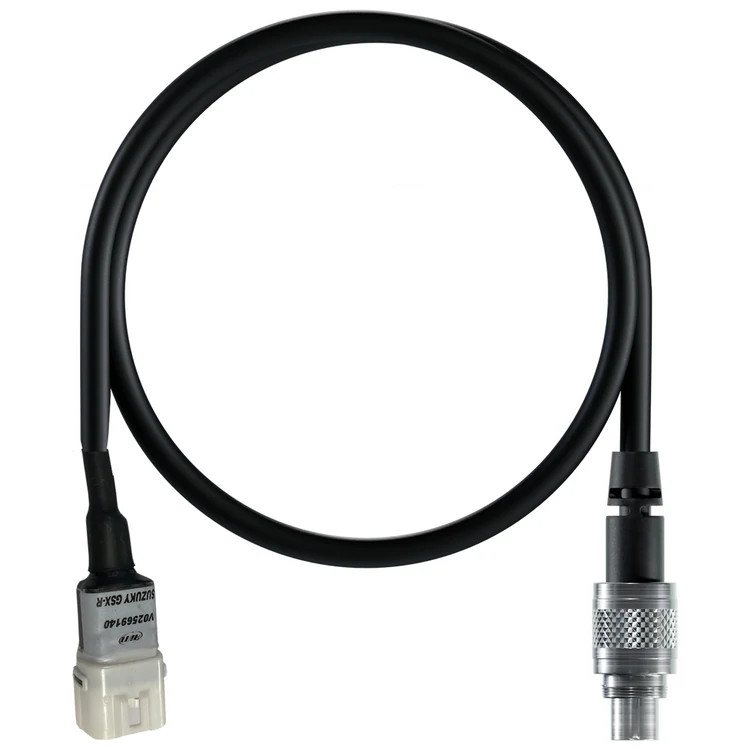

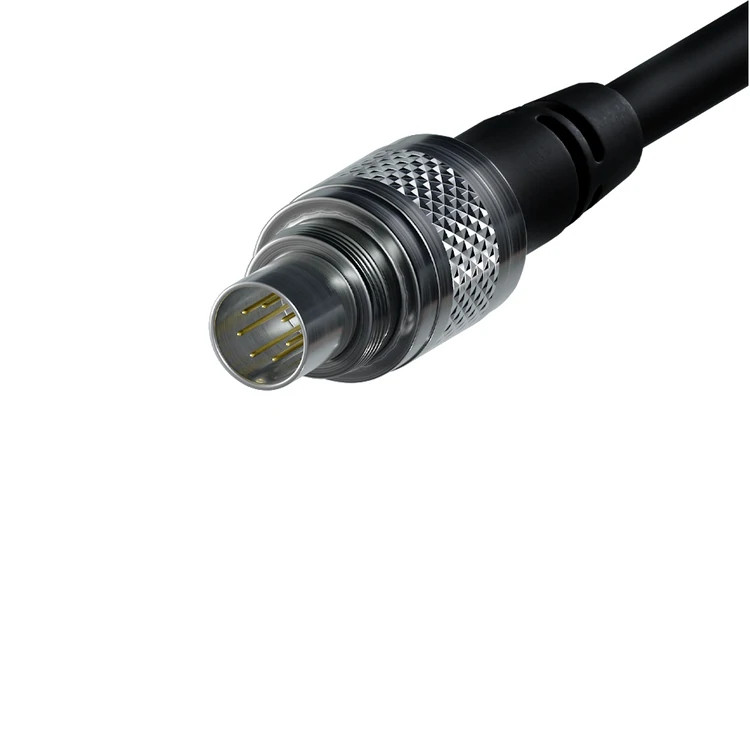

The AiM ECU plug & play cable has been specifically designed for Suzuki bikes. Allowing easy installation to a Solo 2 DL and EVO4S Data Logger. With a 7-pin 712 male binder connection.

Key Features :

Suzuki Plug & Play ECU Cable

The AiM ECU plug & play cable has been specifically designed for the Suzuki bike. This plug & play cable can be used for the Solo 2 DL and EVO4S Data Logger.

The cable is an easy fitment to your bike and allows ECU data to be logged.

Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.

Plug & Play

The plug & play cable currently fits the following Suzuki bike models:

GSX-R600 - 2006-2019	GSX-R750 - 2006-2019
GSX-R1000 - 2005-2019	GSX-R1300 Hayabusa Gen.2 - 2008-2016

Example data protocols

Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.

Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.

Expand Your System

These are some of the items that can be added to your bike for incrementing performance and data.

Technical

• Below is a pinout drawing for the Suzuki Solo 2 DL and EVO4S Data Logger plug & play connection cable
